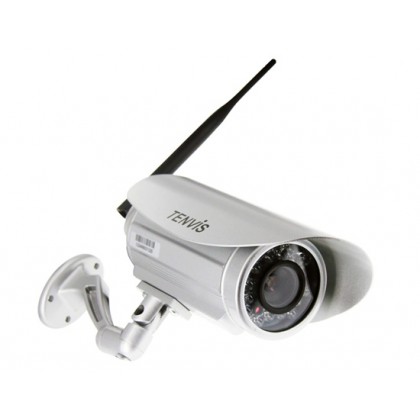

- 1/4 CMOS H.264 Compression 720P P2P Waterproof Outdoor Network Camera (Silver)
Feature
720P High Definition (HD) IP camera
Standard H.264 video compression algorithm to satisfy the transmission of high definition video

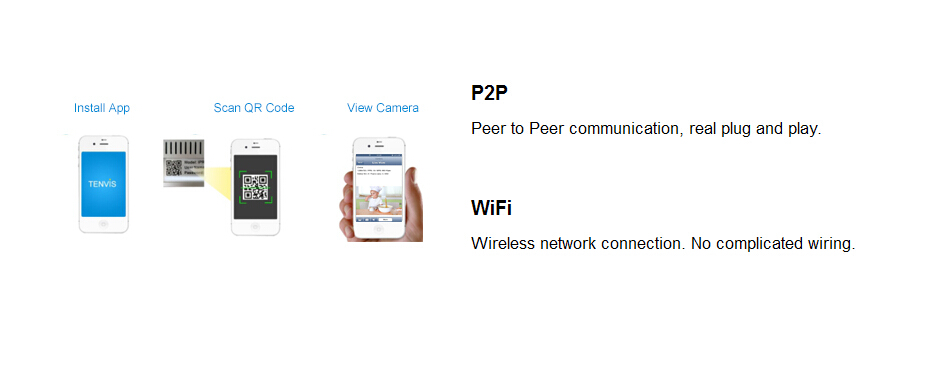

Support P2P (point to point) technology, the IP Cam can be linked through the internet without any complicated port mapping or DDNS settings. There is a unique ID/Password printed on each camera.
High-sensitivity 1/4 inch CMOS sensor (1 Mega pixels)
Embedded 'IR-Cut Filter' provides Enhanced Picture & Color Quality
Support 5X digital zoom in IE Browser
4GB TF card by default for video and picture
Waterproof for outdoor/indoor use
Support Network Attached Storage (NAS) function
Auto IR-LED illumination for night vision (up to 15 meters)
Wi-Fi compliant with wireless standards IEEE 802.11b/g/n
Support smart mobile surveillance via iPhone and Android
Supports IE 6 or above, Safari, Firefox, Google Chrome and any other standard browsers
Supports remote viewing & record from anywhere anytime
Support motion detection alert via email or upload image to a specified FTP server
Support image full screen and image snapshot
Multi-level users management and passwords definition
Multi-Protocol support and Transportation (such as TCP/IP, SMTP, HTTP and etc)
Support both WEP & WPA WPA2 Encryption
Easy to setup, friendly Graphical User Interface, DIY installation
Specification
ITEM |
TENVIS IP391W-HD |
|
Image sensor |
Image sensor |
1/4 Color CMOS |
Lens |
6MM |
|
Infrared LEDs |
18PCS, ø8 |
|
Image Resolution |
1 Mega pixels |
|
Night vision |
15M |
|
Video |
Video Compression |
H.264 |
Max Image Frame Rate |
30fps |
|
Resolution |
1280×720(720P),640×480(VGA), 320×240(QVGA) |
|
Remote transmission |
Support NAS |
|
Privacy mask |
Protect privacy areas |
|
ZOOM |
5X digital ZOOM in IE browser |
|
Mobile view |
Support iOS and Android devices |
|
User Authentication |
Authentication: User/password; |
|
Users Group |
Administrator/Operator/Visitor |
|
Light Frequency |
50Hz, 60Hz or Outdoor |
|
Video Parameters |
Brightness, Contrast |
|
Network |
Ethernet Port |
RJ-45 (10 BASE-T/ 100 BASE-TX) |
Supported Protocols |
TCP/ UDP/ IP / DHCP/ DNS/ HTTP/FTP/ SMTP/PPPOE/ UPNP/ DDNS |
|
Wireless Standard |
IEEE 802.11b/g/n |
|
Wireless Security |
WEP/ WPA/ WPA2 Encryption |
|
Alarm |
SD Card |
4GB TF card by default ,optional up to 32GB TF Card support, customization is needed in order |
Motion Detection |
Send screen captures to email within preset time periods. Record video to TF card or NAS |
|
Physical Property |
Color |
Silver |
Package Dimension |
245(L)*115(W)*185(H)mm |
|
Gross Weight |
1150g (box included) |
|
Power |
Power Supply |
DC 12V/1A (EU, US, AU adapter or other types optional) |
Power Consumption |
4 Watts (Infrared off )/ 6 Watts (Infrared on) |
|
Operating Environment |
Operating Tempt. |
-10° ~ 50°C (14°F ~ 122°F) |
Operating Humidity |
10% ~ 80% RH (non-condensing) |
|
Storage Tempt. |
-20°C ~ 60° (-4°F ~ 140°F) |
|
Storage Humidity |
20% ~ 95% RH (non-condensing) |
|
PC Configuration |
CPU |
2.0GHZ or above (suggested 3.0GHz) |
Memory |
256MB or above (suggested 1.0GHz) |
|
Graphics Card |
64M or above |
|
Supported OS |
Microsoft Windows 2000/XP/Vista/ MAC OS |
|
Supported Browsers |
IE 6.0 or above version, Firefox, Safari, Opera, Chrome or others |
|
Certification |
CE; FCC; RoHS |
|
Warranty |
one years Warranty |
Package Includes
Wireless IP Camera IP391W-HD
Power adapter for Camera x1
Wi-Fi Antenna x1
CD (driver and tool) x1
Mounting bracket ×1
Some Screws
-
