360 Degrees Panoramic Network Camera Surveillance Support ONVIF HD Resolution

Specification

QP130

Optoelectronic

Lens

Fisheye lens, f=1.29mm, F=2.2

Field of Vision

Horizontal 185°/Vertical 185°

Iris

Fixed

Sensor

1/3" Progressive Scan CMOS

Sensibility

0.2Lux@F2.2(Color)/0.02Lux@F2.2(B/W)

Day/Night

Auto switch IR cut

IR Illumination

1W@850nm


Image Flip

Horizontal/Vertical

Image Adjustment

Brightness, Saturation, Sharpness, Contrast, Tone

Max. Resolution

1.3 Megapixels（1280×1024）

Video Coding

Dual Stream H.264

Bit Rate

100Kbps~5120Kbps

Max. Frame Rate

25fps

Audio

Microphone

Internal

Audio Coding

G.711

Pickup Distance

6 Meters

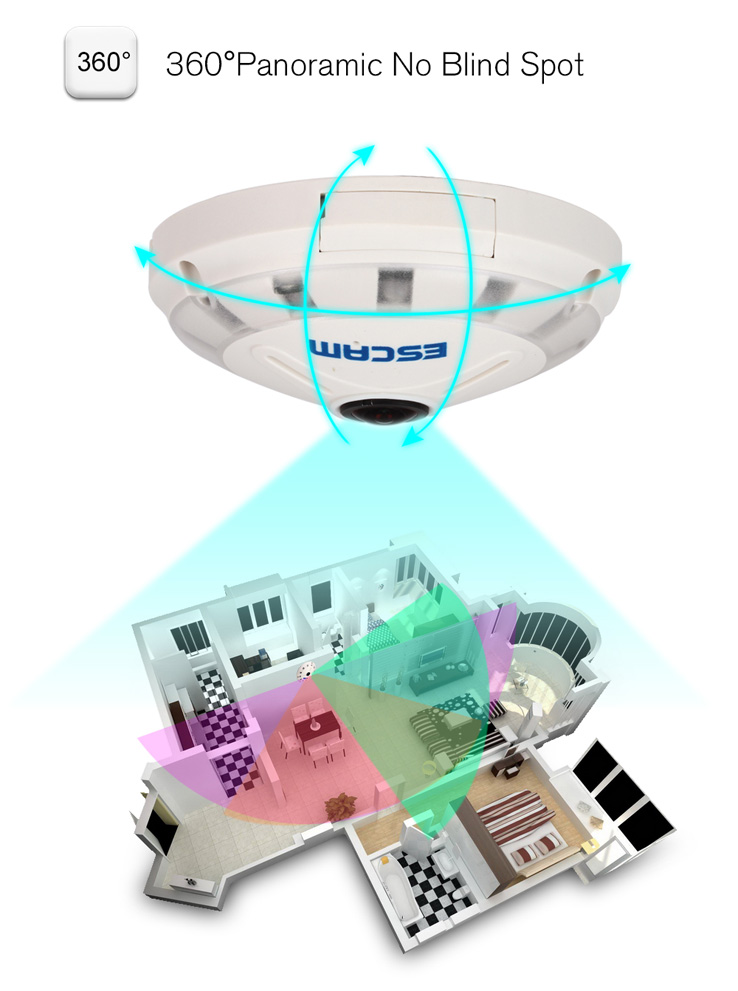

Panoramic Function

Enabled by software

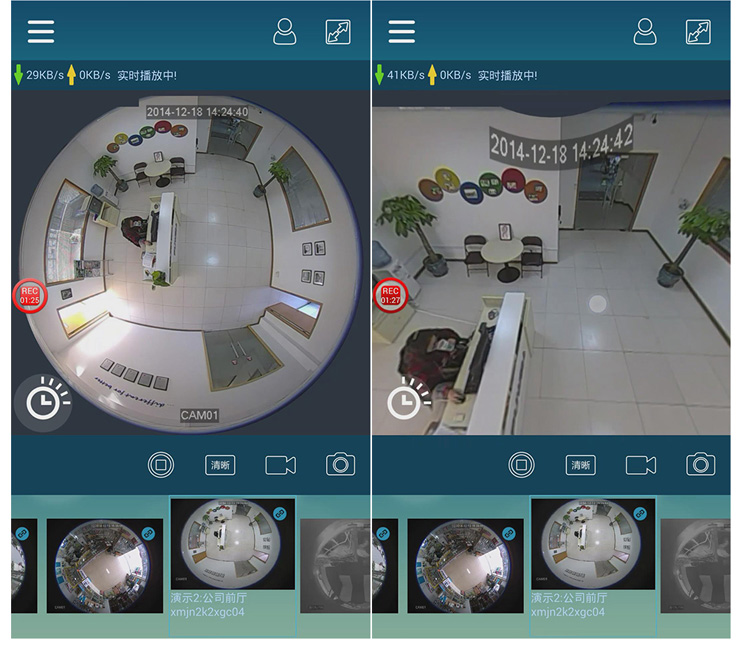

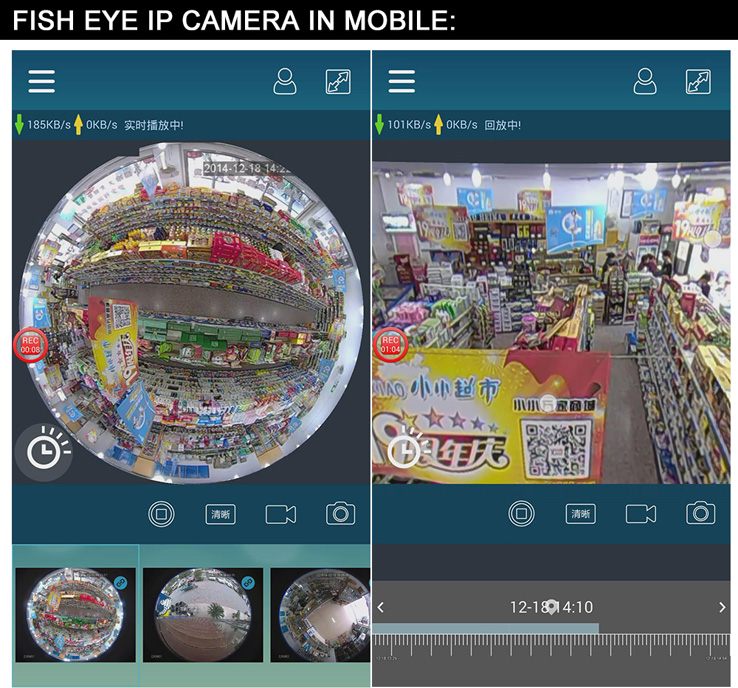

Panoramic Display

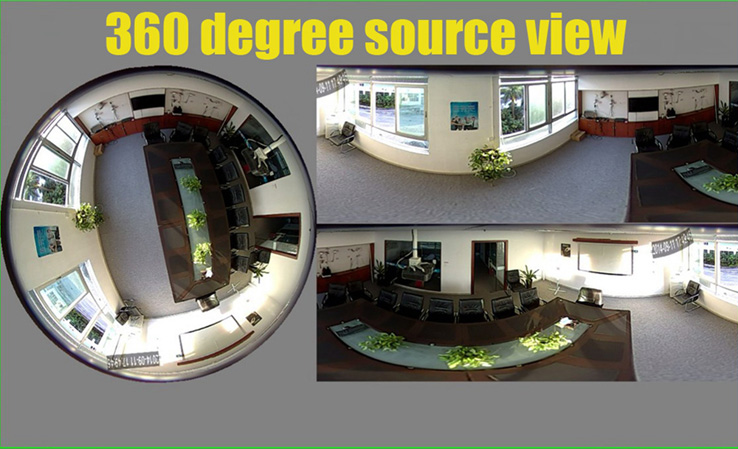

360° panoramic expansion-view,180° 2 split-view, 90° 4 split-view
Longitude and latitude correcting view(wall mounted)

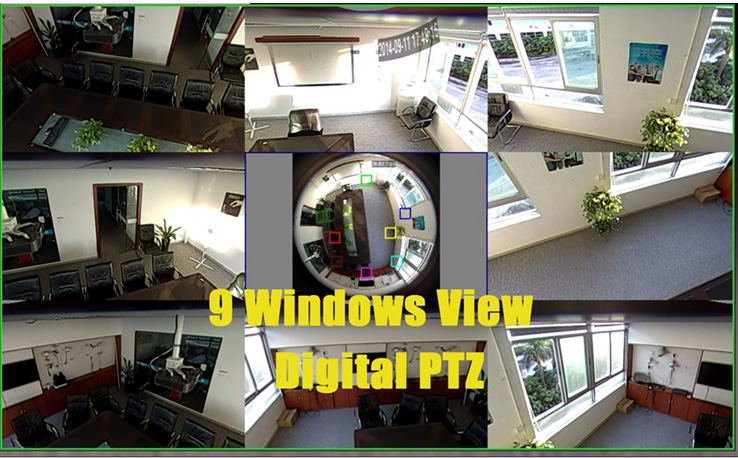

DPTZ

Digital PTZ，Pan/Tilt/Zoom

Intelligent Function

Motion Detection

20×15 Regional detecting, Sensibility 1~6 adjustable

Alarm Function

Alarm Trigger

Motion Detection/Video Tampering/Abnormal procedure/Alarm Input

Alarm Action

Alarm Record/Image Snap， Alarm Video/Image Upload（FTP/Email）

Network

Protocol

TCP/IP，HTTP，DHCP，DNS，RTP/RTSP，FTP，PPPOE，SMTP，NTP

Wifi

N/A

Compatibility

ONVIF2.0

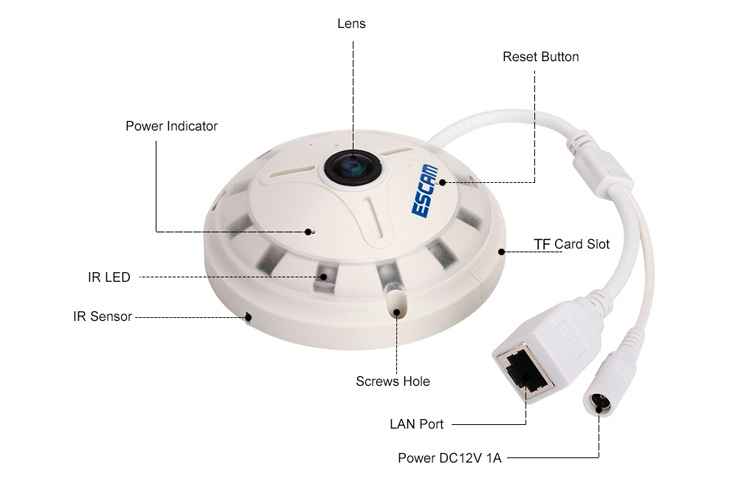

Interface

Communication Port

1  RJ45 10M/100M Ethernet

Alarm Input

N/A

Alarm Output

N/A

Power Interface

ø5.5-2.1mm  round DC socket

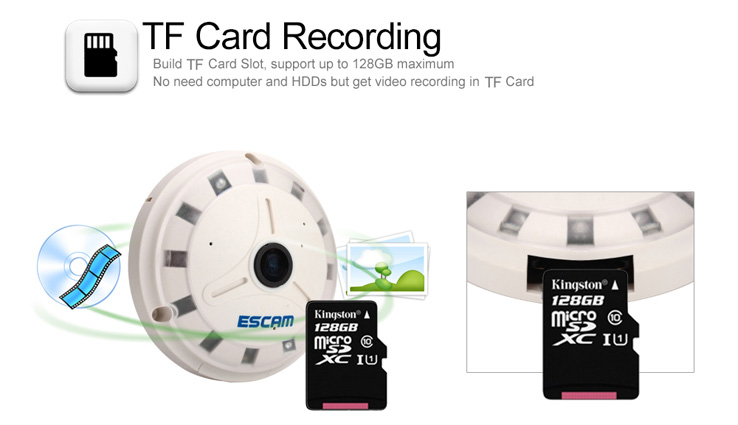

Local Storage

Up to 128G TF Card

Reset

One button reset

General

Power Supply

DC12V±10%，1A

POE

N/A

Power Consumption

<6W

Working condition

-15℃~+50℃@Humidity 10%~ 95%

Storage Condition

-40℃~+75℃@Humidity 10%~ 95%

EMC

CE，FCC

Housing

PC cream-coloured

Protection Grade

IP50

Product Size

Φ100*36.6mm

Package

120×120×95mm

Weight（kg）

N.W.：0.1 / G.W.：0.3
