Features
|
|
|

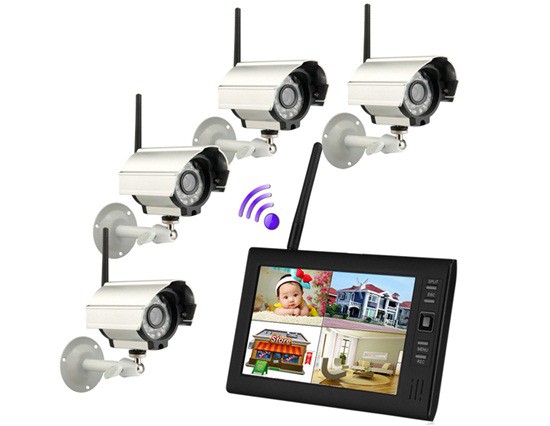

4CH digital wireless camera and DVR system
Total digital wireless, no interference, no privacy leak

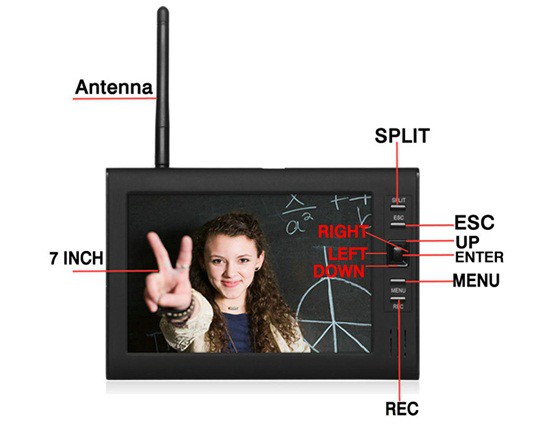

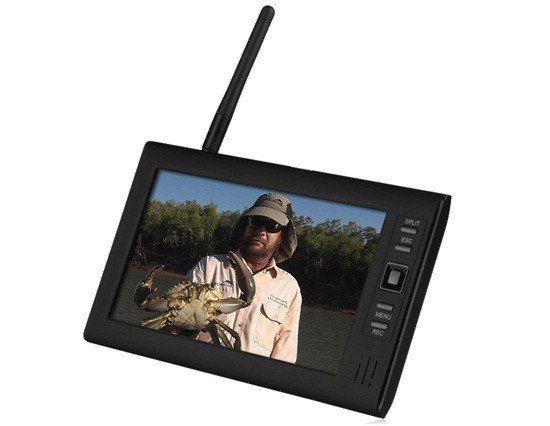

7 inch TFT LCD Monitor with integrated video recorder
Support up to 32GB TF card
Support 4 cameras/24hours/7 days non-stop overwrite recording
Multiple recording modes: manual, schedule and motion activated
6-15 meter night vision range
Weather proof outdoor cameras with 100M transmission open range

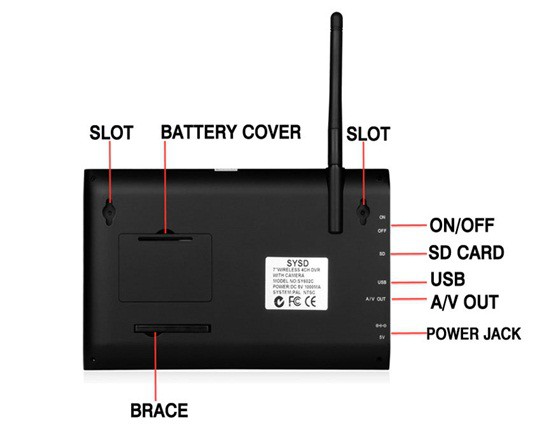

Video output function for bigger monitor
Simple installation no cable required
|
|
General Specs
|
|
|
Brand & Model
|
SY602D14
|
|
Type
|
Digital wireless camera
|
|
Receiver
|
|
|
LCD Screen Size
|
7" TFT LCD Screen
|
|
Resolution
|
800 X 480
|
|
Transmission frequency
|
2.4GHZ Digital RF modulation
|
|
Receiving Sensitivity
|
- 85dBm
|
|
Power Adapter
|
DC 5V/ 1000mA
|
|
Transmission distance without block
|
300m (990ft)
|
|
Battery capacity
|
1200mah (BL-5C)
|
|
Adapter input
|
AC100~240V, 50/60Hz DC5V 1000MA
|
|
Dimensions
|
20 X 12 X 2 cm
|
|

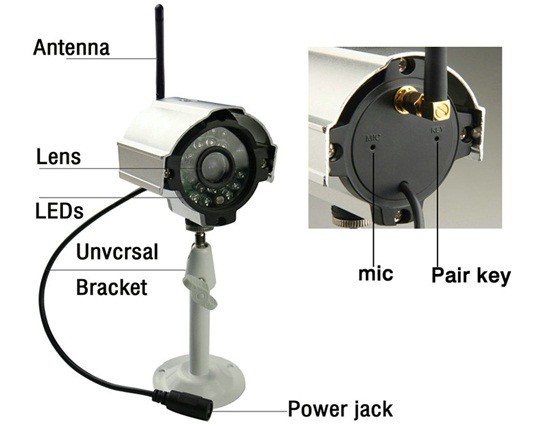

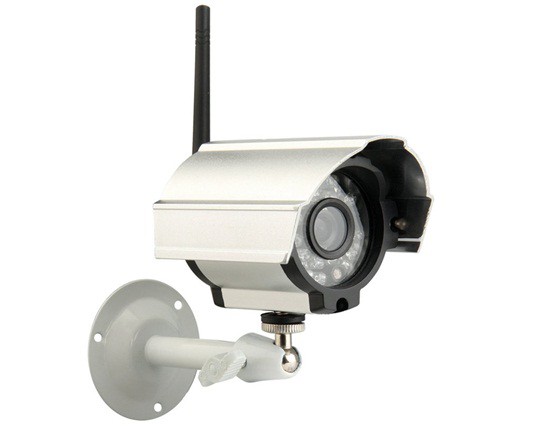

Camera
|
|
|
Image Sensor
|
1/4" Omni OV7725 Vision CMOS
|
|
Adapter input
|
AC100~240V, 50/60Hz DC5V 1000MA
|
|
Horizontal Definition
|
380 TV line
|
|
Transmission frequency
|
2.4GHZ Digital RF modulation
|
|
Minimum Illumination
|
0Lux (Infrared LED ON/ 5LUX)
|
|
Night-vision distance
|
15m
|
|
Power Adapter
|
DC 5V/ 1000mA
|
|
Dimensions
|
9.5 X 6.9 X 6.9cm
|
Package Details
Weight: 2461.00 g
Size: 26*19.5*18.5 cm
