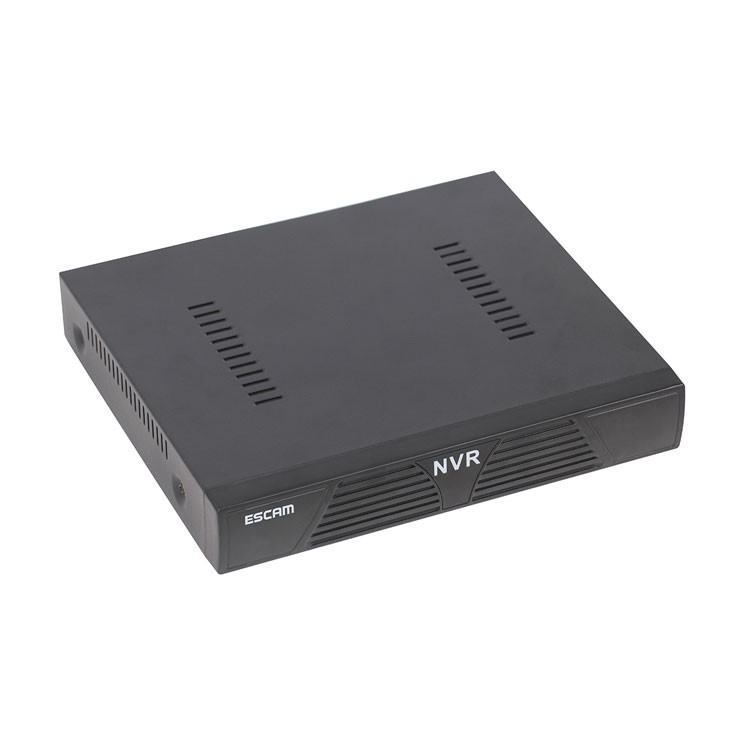

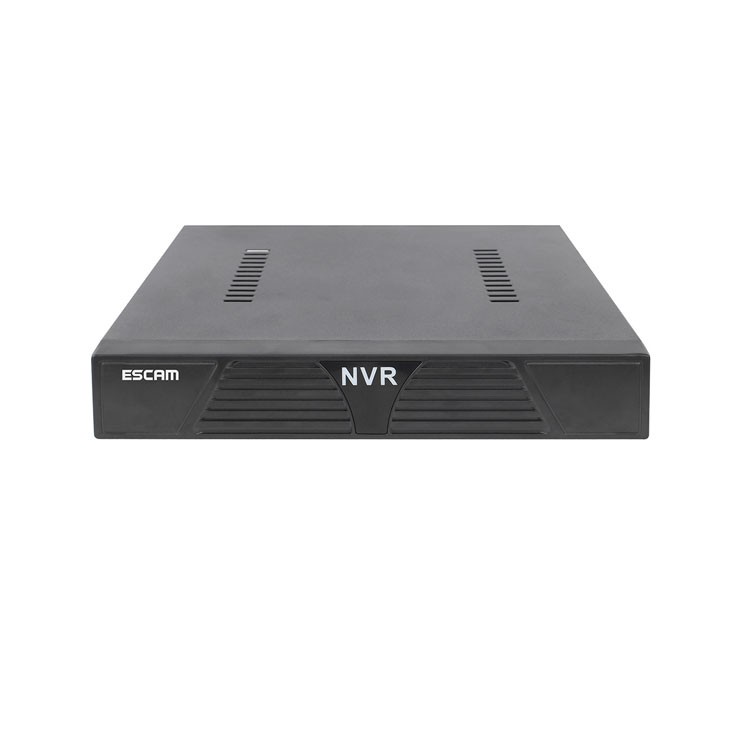

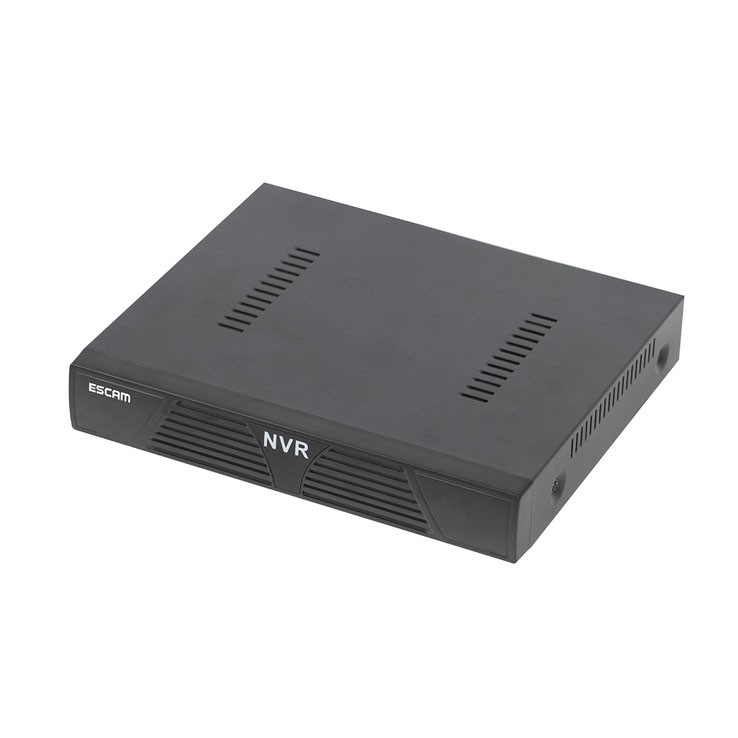

ESCAM K616 HD Full 960P Real-time Standalone Network IP NVR Supports MAX 6TB HDD

Operating System		Embedded LINUX operating system
Image Code Control		Image code quality adjustable, variable bitstream and constant bitstream optional
Dual Stream		Each channel can set main stream and sub stream
Video Standard		1080P(1920×1080)30fps/960P/(1280×960)/720P(1280×720)30fps
Monitoring Image Quality		1080P(1920×1080) / 960P/(1280×960)/720P(1280×720)
Image Motion Detection		Each screen can set multiple detection areas and set 6-level sensitivity
Recording Playback Quality		1ch playback simultaneously
Region Cover		Every channel can set 4 cover regions（IPC Support）
Recording Mode		Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support)
Backup Way		Support U disk, USB mobile HDD, USB DVD-RW. network storage and backup
Operation Way		Mouse
Local Login		Username and password
Recording Storage		Local HDD, network
External Ports	Video Input	①16×(1280720)+sub[640480]+2Ref.+1Play 16ch 1.0MP IP Camera
		②16×(1280960)+sub[640480]+2Ref.+1Play 16ch 1.3MP IP Camera
		③9×(12801080)+sub[640480]+2Ref.+1Play 16ch 2.0MP IP Camera
		④9×(12801080)+sub[720576]+2Ref.+1Play 16ch 2.0MP IP Camera

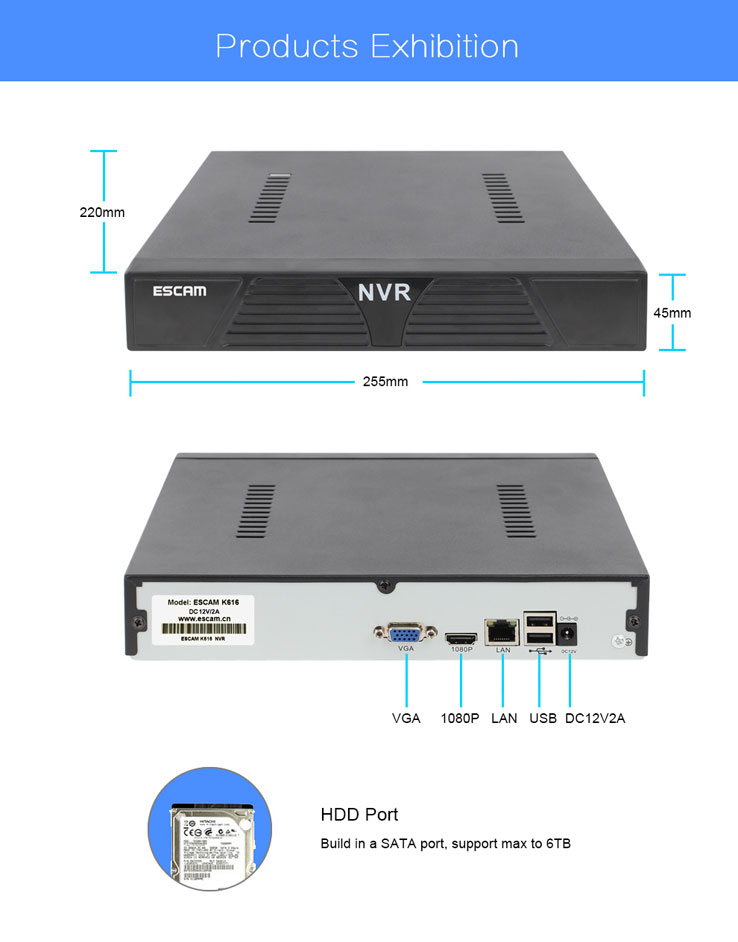

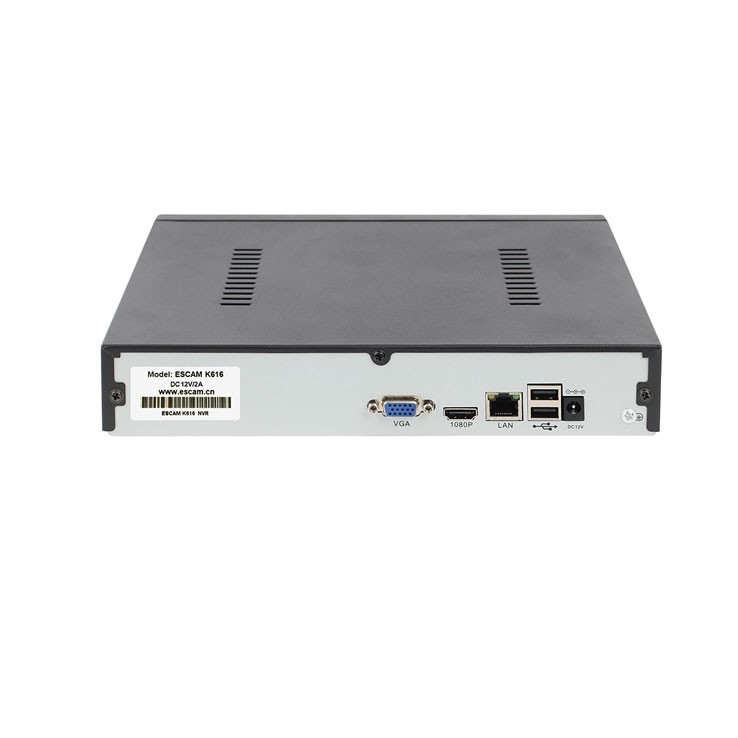

	Video Output	1ch VGA+1ch HDMI
	Network Port	1 RJ45,10M/100M/1000M self-adaptive LAN port
	USB Port	2 USB 2.0 ports
HDD	HDD Port	1 SATA HDD Port
	MAX Capacity	Each port supports MAX 6TB HDD
Mobile Surveillance		Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone
Power Supply		12V2A
Power Consumption		≤25W（without HDD）
Working Temperature		-10℃～＋55℃
Working Humidity		10％-90％
Dimension		Equipment：255mm×220mm×43mm， Packing： 355mm×255mm×88.5mm
Weight(without HDD)		N.W.：700g；With packing：1200g
Installation Way		Desktop Installation
