Parameter:
|
Model Number
|
K104
|
|
Operating System
|
Embedded LINUX operating system
|
|
Image Code Control
|
Image code quality adjustable, variable bitstream and
constant bitstream optional
|
|
Dual Stream
|
Each channel can set main stream and sub stream
|
|
Video Standard
|
1080P(1920×1080)30fps/960P/(1280×960)/720P
(1280×720)30fps
|
|
Monitoring Image
Quality
|
1080P(1920×1080) / 960P/(1280×960)/720P
(1280×720)
|
|
Image Motion Detection
|
Each screen can set mutiple detection areas and set 6-
level sensitivity（IPC Support）
|
|
Recording Playback
Quality
|
4ch playback in 4ch 720/960P mode;1ch 1080P playback
in 1/4ch 1080P mode
|
|
Region Cover
|
Every channel can set 4 cover regions（IPC Support）
|
|
Recording Mode
|
Support manual , auto, dynamic detection, alarm trigger
record mode(Partly needs IPC Support)
|
|
Backup Way
|
Support U disk, USB mobile HDD, USB DVD-RW, network
storage and backup
|
|
Operation Way
|
Mouse
|
|
Local Login
|
User name and password
|
|
Recording Storage
|
Local HDD, network
|
|
External
Ports
|
Video Input
|
①4×(1280*720)+sub[960*576]+4Ref.+4Play Support
4ch 1MP IP camera
|
|
②4×(1280*960)+sub[960*576]+1Ref.+4Play Support
4ch 1.3MP IP camera
|
|
③4×(1920*1080)+sub[960*576]+4Ref.+1Play Support
4ch 2MP IP camera
|
|
④1×(1920*1080)+sub[960*576]+4Ref.+1Play Support
1ch 2MP IP camera
|
|
⑤4×(720*576)+sub[352*288]+4Ref.+4Play Support
4ch 0.4MP IP camera
|
|
Audio Input
|
4ch network audio input
|
|
Video Output
|
1ch VGA+1ch HDMI
|
|
NetworkPort
|
1 RJ45,10M/100Mself-adaptive LAN port
|
|
USBPort
|
2 USB 2.0 ports
|
|
WirelessPort
|
3G，WIFI
|
|
HDD
|
Mobile HDD/E-SATA/USB Disk
|
|
Mobile Surveillance
|
Support( iPhone, Windows Mobile, BlackBerry, Symbian,
Android) smart phone
|
|
Power Supply
|
5V2A
|
|
Power Consumption
|
≤10W（without HDD）
|
|
Working Temperature
|
-10℃～＋55℃
|
|
Working Humidity
|
10％-90％
|
|
Dimension
|
Equipment：88mm×88mm×32mm，
Packing：185.5mm×115.5mm×36mm
|
|
Weight(without HDD)
|
N.W.:105g; With packing:250
|
|
Outside Carton
|
30 pcs/carton.365mm×350mm×188mm; Weight:8kg
|
|
Installation Way
|
Desktop Installation
|
|
Key Features
|
|
>1/4”1Megapixel progressive scan CMOS
>H.264 dual-stream encoding
>Max 25/30fps@720P(1280×720)
>DWDR, Day/Night(ICR), 2DNR, AWB, AGC, BLC
>Multiple network monitoring: Web viewer, CMS
>3.6mmfixed lens
>Max. IR LEDs Length15m
>DC12V1A
|
|
Model
|
QD300
|
|
Camera
|
|
Image Sensor
|
1/4”1Megapixel progressive scan CMOS
|
|
Effective Pixels
|
1280(H)x720(V)
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
Auto/Manual 1/3(4)~1/10000
|
|
Min. Illumination
|
Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2,0Lux (IR on)
|
|
S/N Ratio
|
More than 50dB
|
|
Video Output
|
N/A
|
|
Camera Features
|
|
Max. IR LEDs Length
|
15m
|
|
Day/Night
|
Auto(ICR) / Color / B/W
|
|
Backlight Compensation
|
BLC/ HLC/ DWDR
|
|
White Balance
|
Auto/Manual
|
|
Gain Control
|
Auto/Manual
|
|
Noise Reduction
|
3D
|
|
Privacy Masking
|
Up to 4 areas
|
|
Lens
|
|
Focal Length
|
3.6mm
|
|
Max Aperture
|
F1.8
|
|
Focus Control
|
Manual
|
|
Angle of View
|
H: 70°
|
|
Lens Type
|
Fixed lens
|
|
MountType
|
Board-in Type
|
|
Video
|
|
Compression
|
H.264
|
|
Resolution
|
720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240)
|
|
Frame Rate
|
Main Stream
|
720P(1 ~ 25/30fps)
|
|
Sub Stream
|
D1/CIF(1 ~ 25/30fps)
|
|
Bit Rate
|
H.264: 16K ~ 8192Kbps
|
|
Audio
|
|
Compression
|
N/A
|
|
Interface
|
N/A
|
|
Network
|
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
Wi-Fi
|
N/A
|
|
Protocol
|
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
|
|
ONVIF
|
ONVIF Profile S
|
|
Max. User Access
|
10 users
|
|
Smart Phone
|
iPhone, iPad, Android
|
|
P2P
|
iPhone, Android Mobile App
|
|
Auxiliary Interface
|
|
Memory Slot
|
N/A
|
|
RS485
|
N/A
|
|
Alarm
|
N/A
|
|
PIRSensorRange
|
N/A
|
|
General
|
|
Power Supply
|
DC12V1A
|
|
POE
|
N/A
|
|
Power Consumption
|
<4W
|
|
Working Environment
|
-30°C~+60°C, Less than 95%RH
|
|
Ingress Protection
|
N/A
|
|
Vandal Resistance
|
N/A
|
|
Dimensions
|
107mmx68mmx60mm
|
|
Weight
|
0.25Kg
|
|
Approvals
|
CE FCC RoHS
|

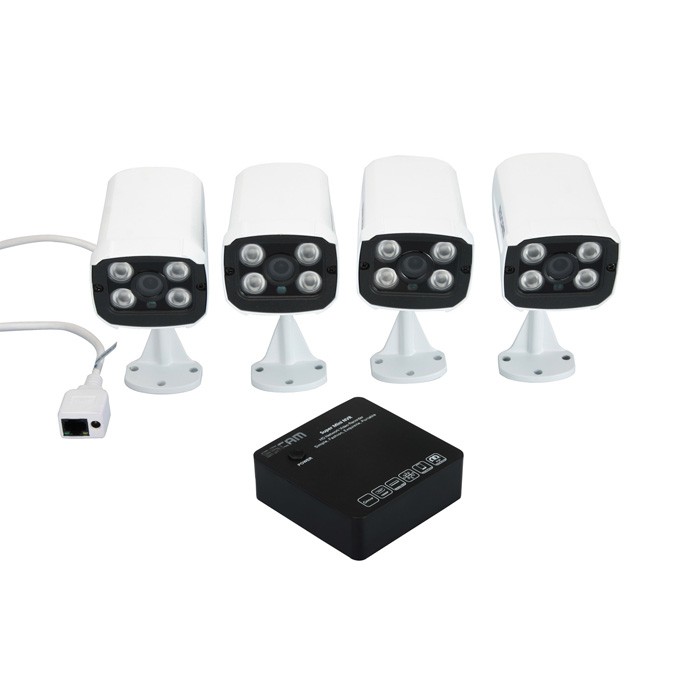

Item Includes:
1 X H. 264 4CH 1080P/720P NVR(K104)
1 X User Manual for NVR
1 X Power Adapter for NVR
4 X Day/Night Waterproof 1080P/720P IR Camera (QD300)
4 X AC100-240V to DC12V Power Supply Adapter for IR Camera
4 X User Manual for IR Camera
(The Item Doesn't Contain Hard Disk)
