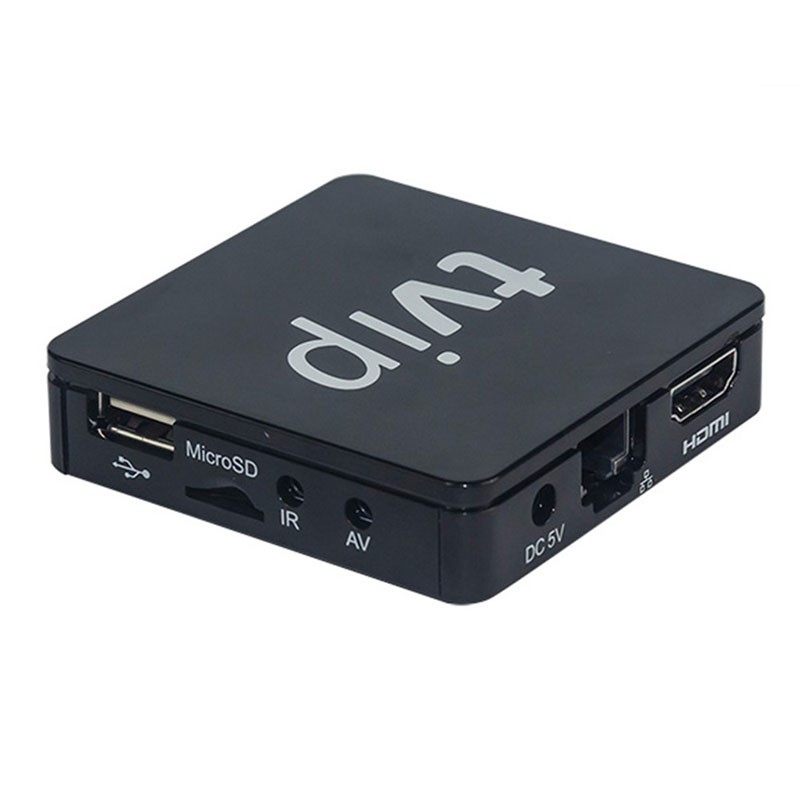

Mini Set Top Box of TVIP Box Linux or Android 4.4 Double System support H.265

Use cases:

Under operation of Middleware TVIP

Under operation of IPTV PORTAL Middleware

Under operation of Middleware Stalker

Client's custom MiddleWare over C++ API

Without a Middleware using simple M3U-playlists

Media player with USB/Lan media playback support

Client's custom MiddleWare over HTML5/JS API

Client's custom Android APK

Tech specs:

OS: Android KK 4.4 or Linux

SOC: ARM cortex A5 1,5Ghz Quad core

4Gb Flash drive

OpenGL ES 2.0 support

OSD/Video resolution up to 1920x1080

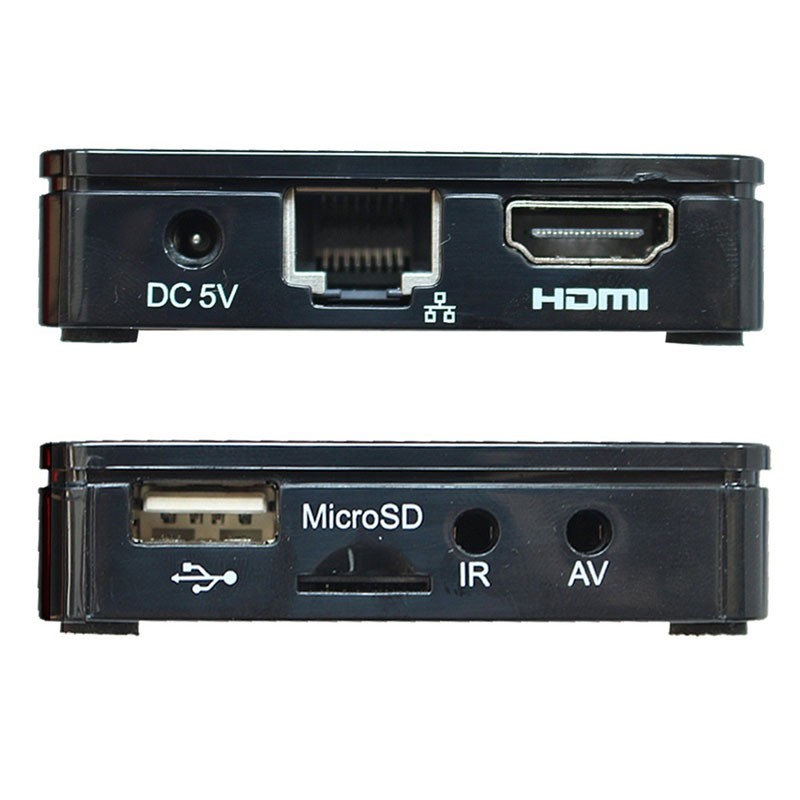

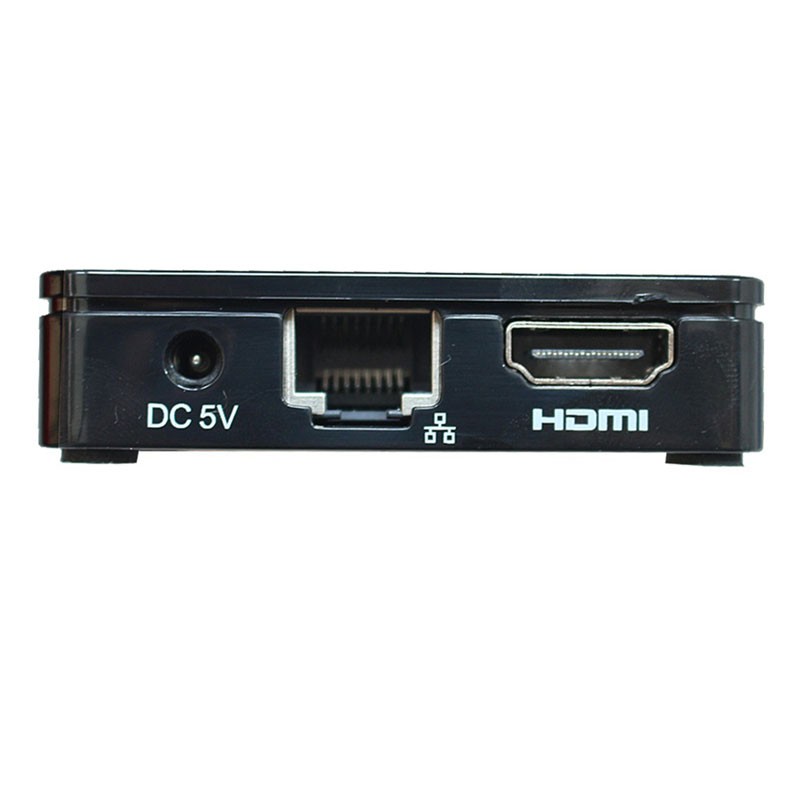

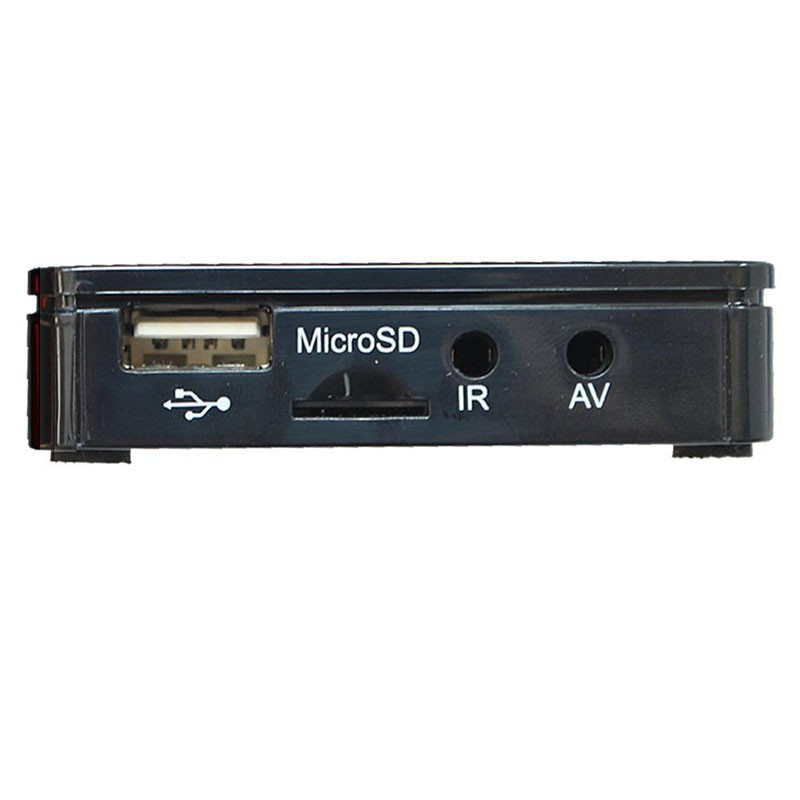

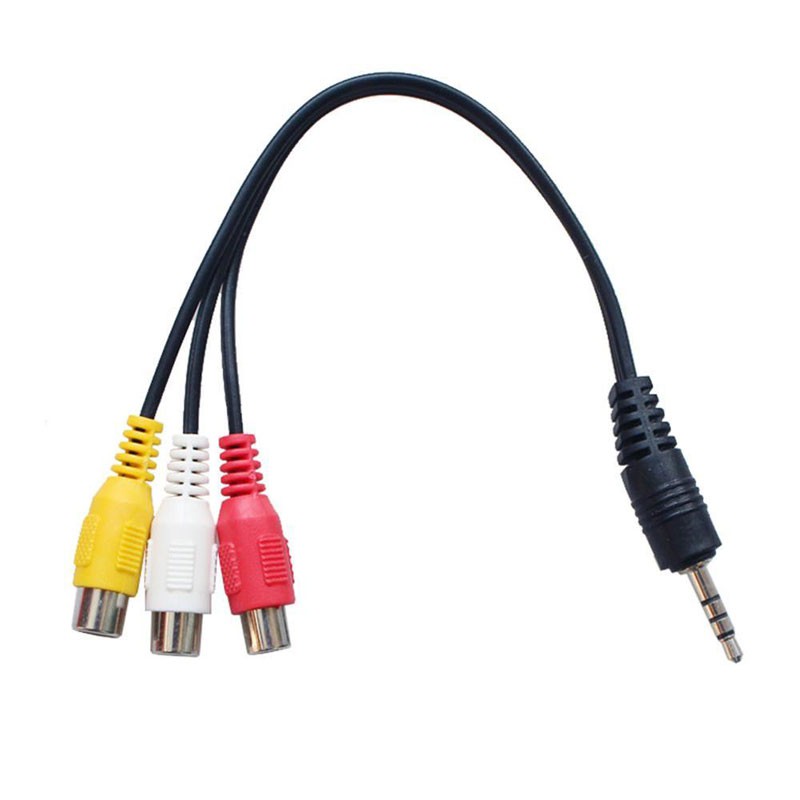

Interfaces: HDMI, AV, Ethernet, 1xUSB, MicroSD Card, ext.IR

Containers: MPEG-TS, AVI, MKV, MP4

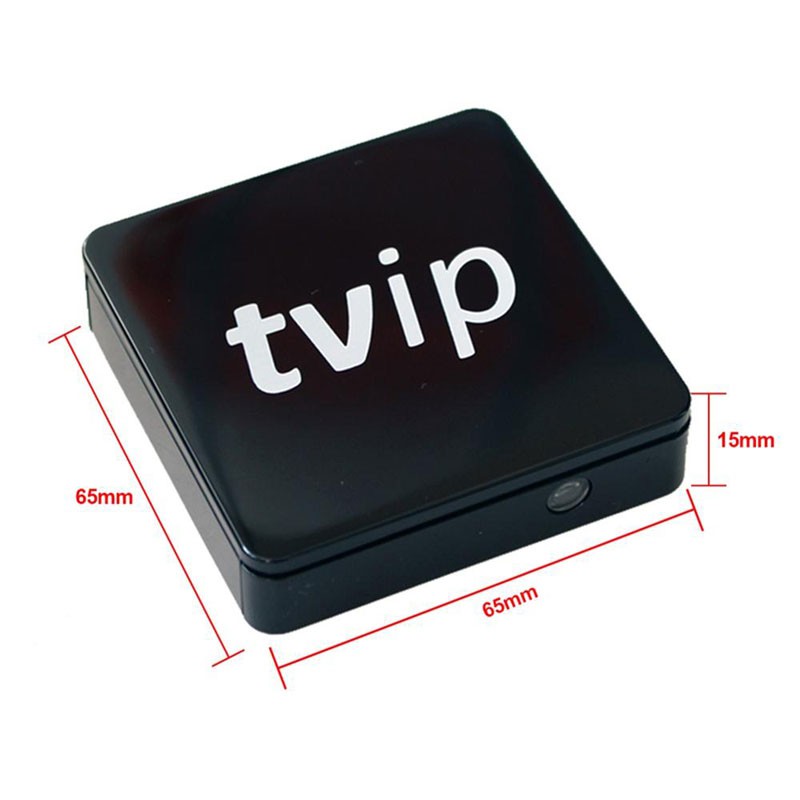

Size: 67х67х15 mm.

Video codec support:

H.265 HEVC MP@L4.1 up to 1080P@60fps

H.264 AVC HP@L4.2 up to 1080P@60fps

H.264 MVC up to 1080P@60fps

MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)

WMV/VC-1 SP/MP/AP up to 1080P@60fps

AVS Jizhun Profile up to 1080P@60fps

MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)

MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)

RealVideo 8/9/10 up to 720P

WebM up to VGA

CAS/DRM support:

TVIP CAS

ARES CAS (IPTV Portal)

Widevine

Features:

Windows sharing support (samba).

External USB and SD-card support

Support for filesystems: FAT16/32, NTFS (read), NFS, Ext2, Ext3.

Streaming media protocol support RTSP, RTP, UDP, IGMP, HTTP.

Timeshift using USB drive or SD-card

M3U playlist support

TV guide support for EPG: xmltv and jtv.

Air mouse support

Android applications support, including games

Browser

Photo viewer

YouTube

Airplay

DLNA

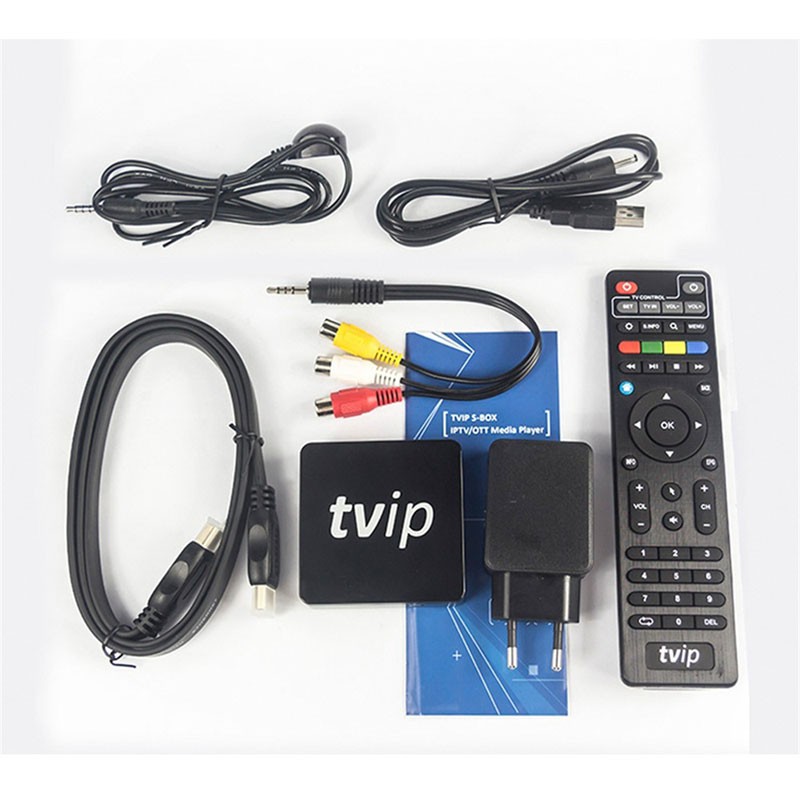

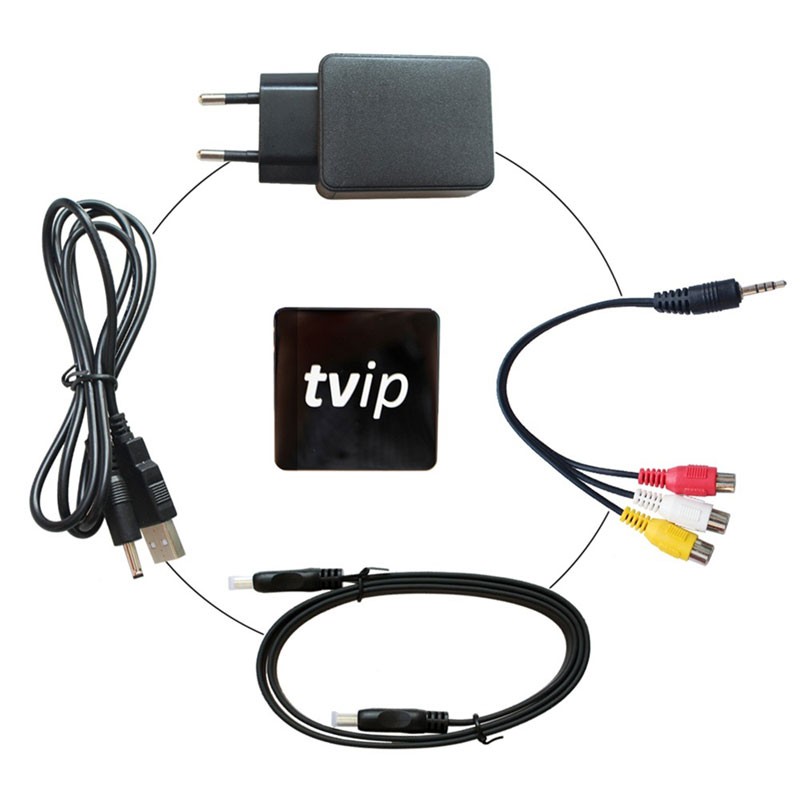

Package Content:

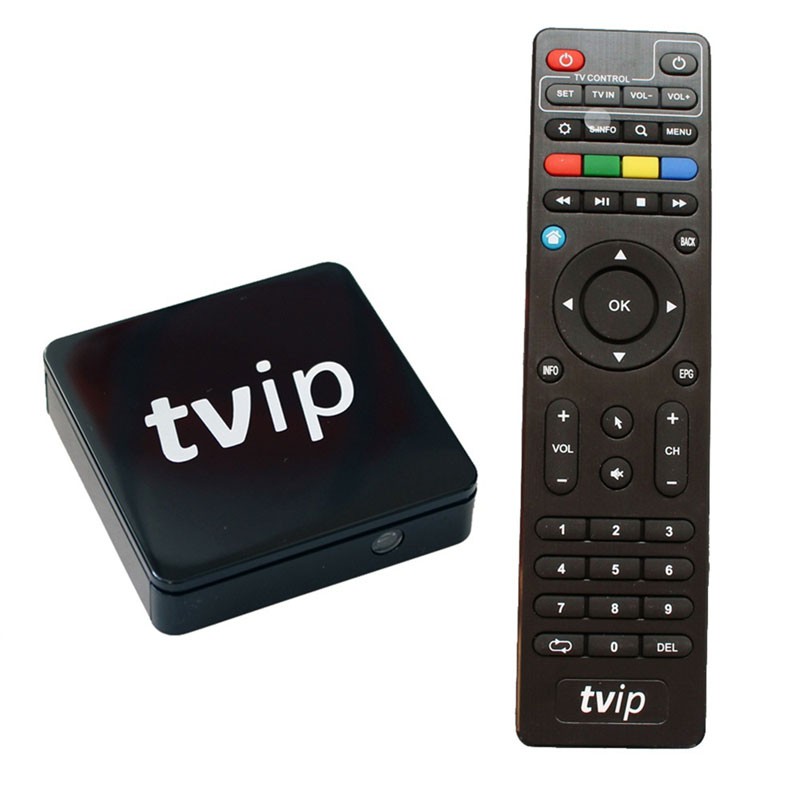

1x set top box

1x HDMI cable

1x remote control

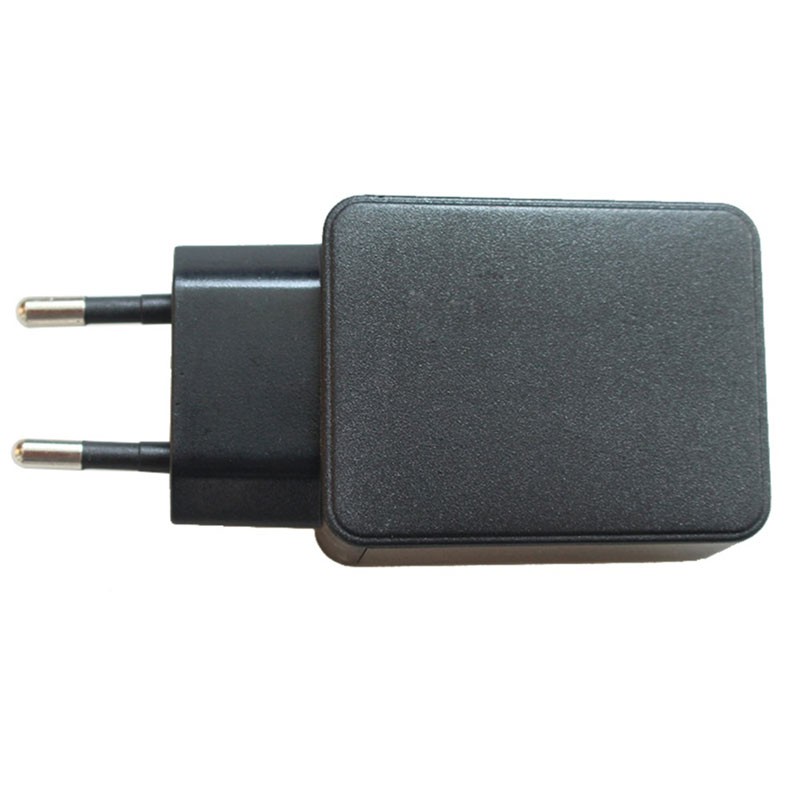

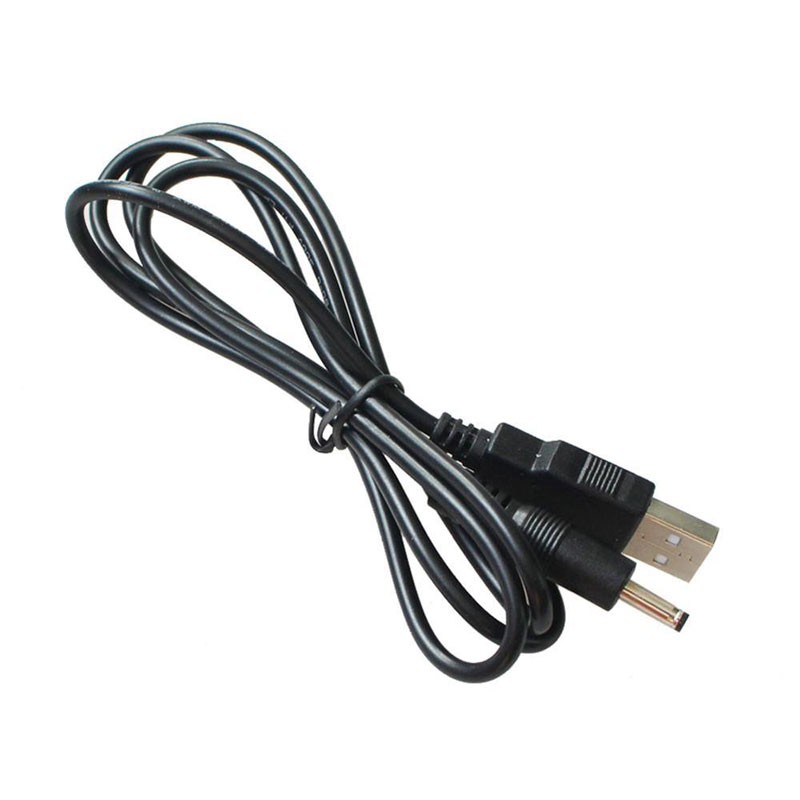

1x power cable

1x user manual
