Features
|
System security
|
Account, password authority management
|
|
Free DDNS
|
Free DDNS, supports dynamic IP.
|
|
View by phone
|
Support HD pic IOS, Android mobile view (iOS 4.3、Android OS 2.3 above)
|
|
Local Storage
|
support up to 64GB MicroSD card ，24-hour loop recording.
|
|
Monitor Advantage
|
Support PC computer monitoring, smartphone multi-pic view.
|
|
PnP
|

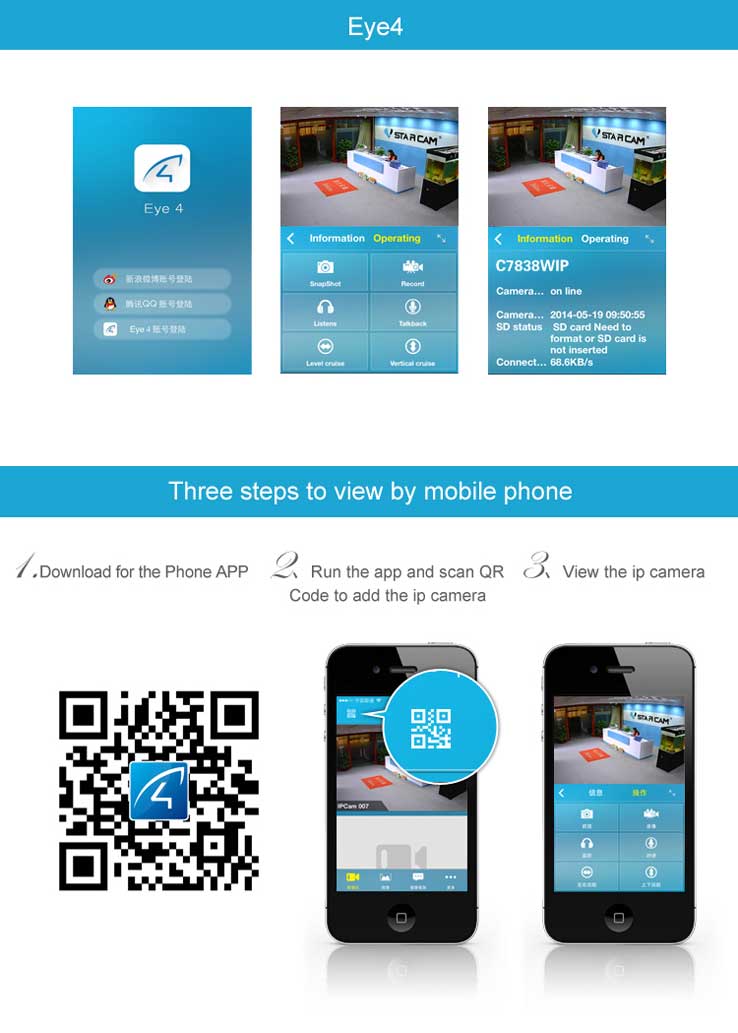

Plug & Play,99% penetration rate, Easy to setup: 1. connect the network cable and power adapter, 2.install APP, scan UID code to add camera. 3,Click online camera to view the camera.
|
|
Sever cluster
|
Using Amazon Cloud PnP servier cluster, intelligent application and super stable
|
|
UID Technology
|
UID scan technology applied, easy to operate, and highly confidential.
|
|
Super Client
|
1,4,9,16,25,36, 64,81-channel central management software, no user number limitation , centralized surveillance, remote record and playback, alarm email ect.
|
|
System
|
OS
|
Embedded Linux OS
|
|
Control protocol
|
ONVIF 2.0 protocol, high interoperability
|
|
Video coding
|
Multi stream：720P@30fps+VGA@30fps+QVGA@30fps+720P @1fsJPEG capture
|
|
Bit Rate
|
CBR/VBR, output bit rate range：128～4096kbps
|
|
Processor
|
Hi processor, built in ARM926 @Max. 440MHz and high-speed video co-processor
|
|
Video
|
Compression Format
|
H.264 baseline profile@levels:3.1/Motion-JPEG
|
|
Frame rate
|
30fps/24fps（720p）
|
|
Resolution
|

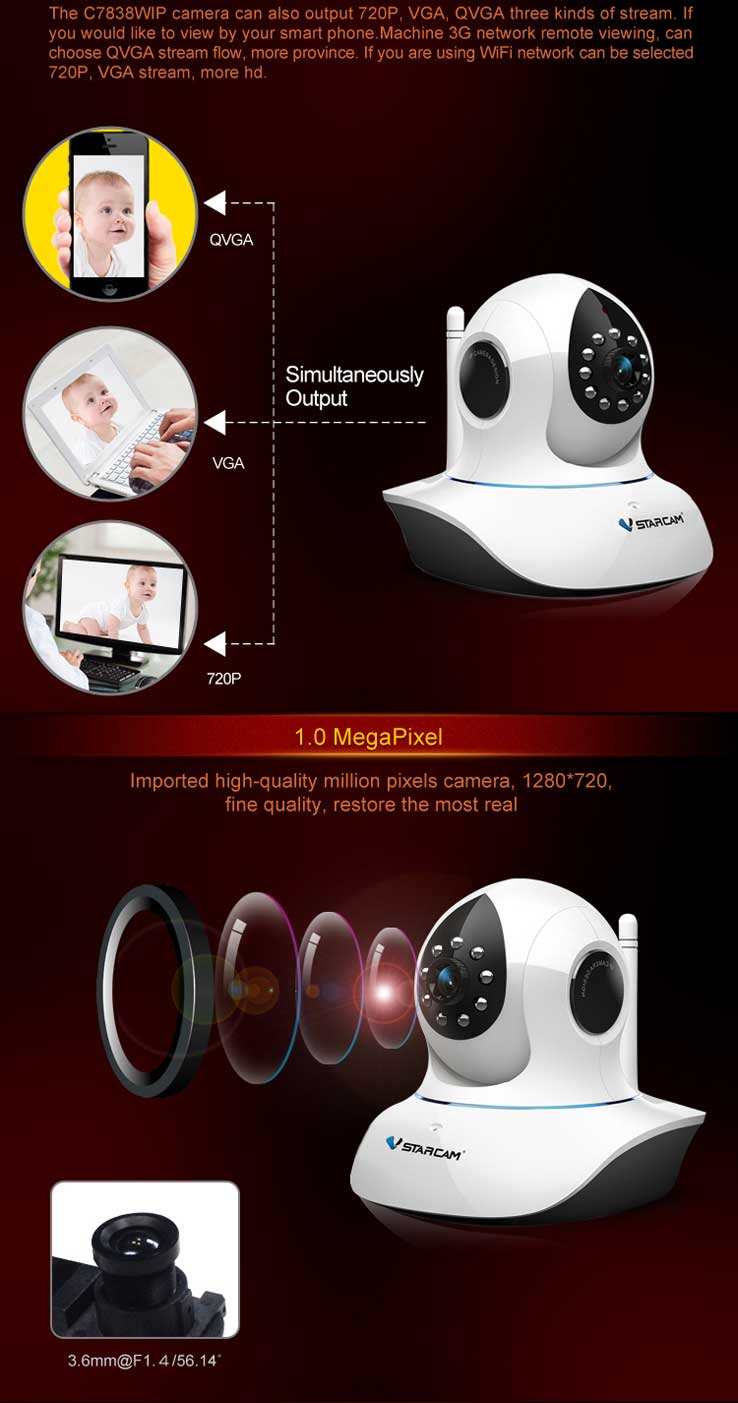

720P(1280*720), VGA(640*480), QVGA(320*240)
|
|
Picture Adjustment
|
Contrast, Brightness, Saturation are adjustable.
|
|
Sensor
|
1/4 720p Progressive CMOS sensor
|
|
Minimum illumination
|
0.8Lux/F1.４（colourful model ）,0.3Lux/F1.（B&W mode）
|
|
SNR
|
≥39dB
|
|
IR control
|
IR turned on: night vision view enabled, infrared Ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode.
|
|
Electronic shutter
|
1/50s(1/60s）-1/100, 000s
|
|
CMOS
|
support AWB, AGC, BLC
|
|
Lens/viewing angle
|
3.6mm@F1.４/56.14˚
|
|
Night Vision
|
Night vision
|
Dual IR-CUT Filter auto switch, 12pcs 850nmΦ5mmLED,10mIR distance
|
|
Audio
|
Compression format
|
ADPCM/32kbps
|
|
Input
|
1 Channel Line in (3.5mmphone jack) &1 Channel Internal -48dB Microphone
|
|
Output
|
1 Channel Line out (3.5mmphone jack)&Internal speaker(8Ω1W)
|
|
P/T
|
P/T
|

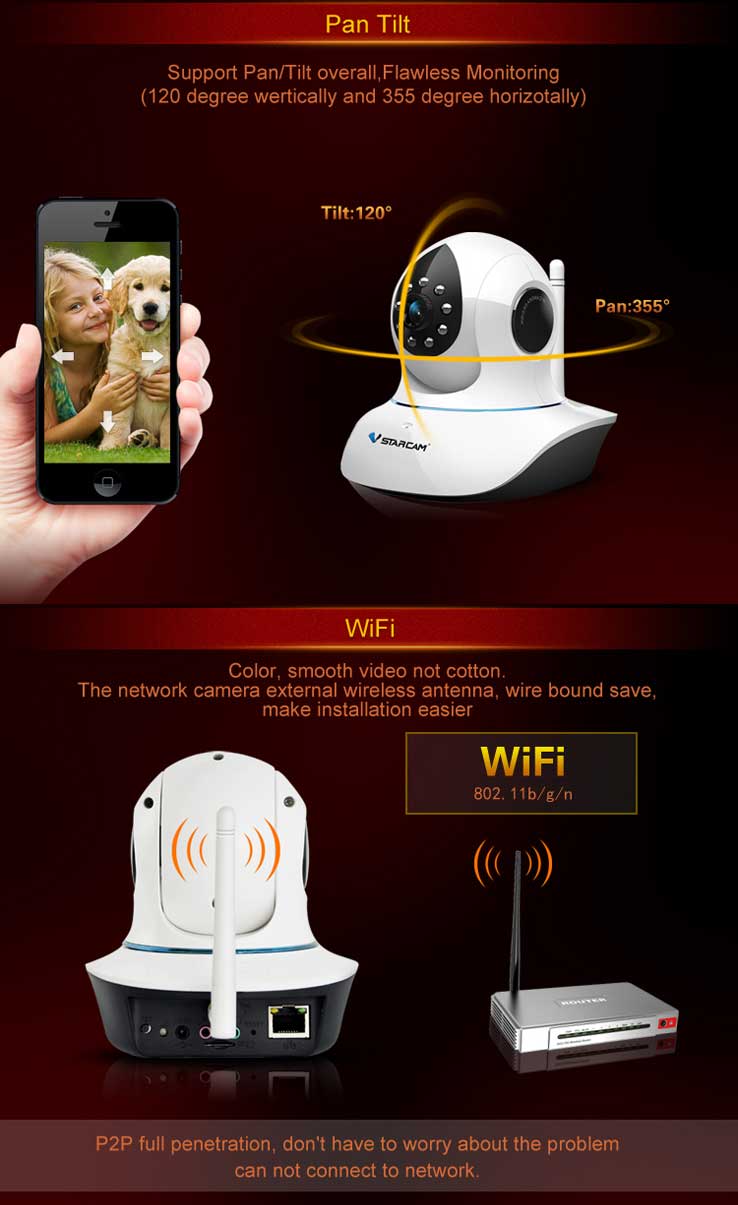

Pan:355°,Tilt:120°
|
|
Preset Postion
|
suppor up to 15 preset postions
|
|
Network
|
network interface
|
10Base-T/100Base-TX Ethernet interface
|
|
Network Protocol
|
TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP，P2P,onvif etc.
|
|
wireless network security
|
one key wifi setup,don't need network cable .
|
|
Online visitor
|
Support 4 online visitors simutaneoursly
|
|
IP address
|
Dynamic IP and static IP address
|
|
WIFI
|
WIFI 802.11 b/g/n
|
|
Others
|
housing material
|
engineering plastics
|
|
Application environment
|
Indoor
|
|
Rated Voltage
|
DC5±0.3V
|
|
Temperature
|
-10~50 °C
|
|
Power consumption
|
rated power：3.5Ｗ(IR opening )/maximum power：7W(P/T working )
|
|
Package size
|
195x140x130mm(L×W×H)
|
|
Weight
|
Gross Weight ：755g（Note: in kind prevail）
|
|
Accessories
|
Power adapter, user manual, warranty card, mounting bracket, screws.
|
|
Alarm
|
Motion Detection
|
Support motion detecting
|
|
System Requirement
|
System configuration
|
Win98 SE/ME/2000/XP,Vista,iPhone iOS4.3,The android version 2.3 or higher
|
|
Certificate
|
Certificate
|
ISO FCC CE RoHS
|
|
|
|
