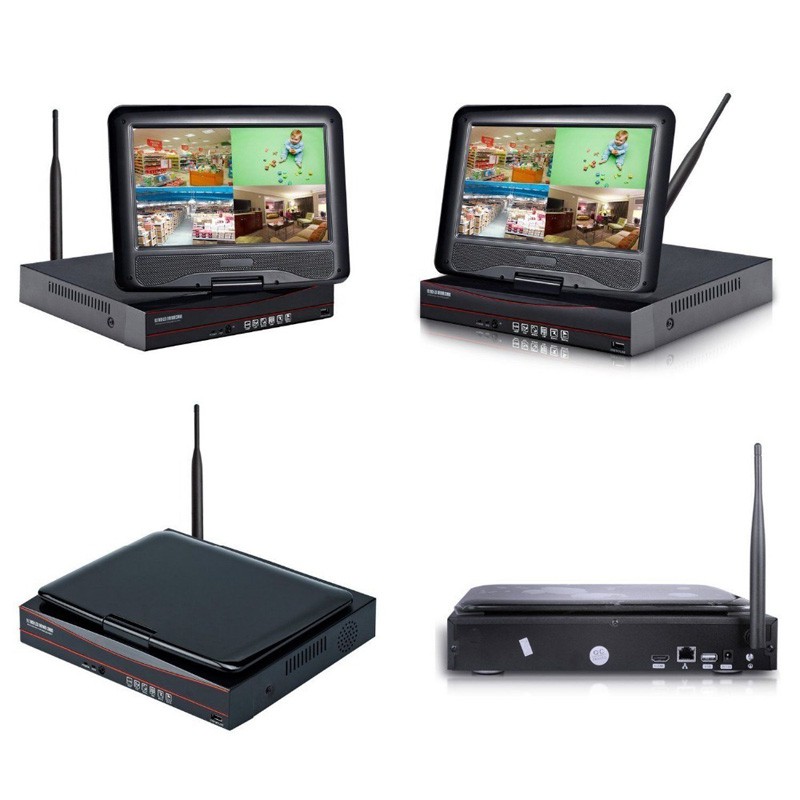

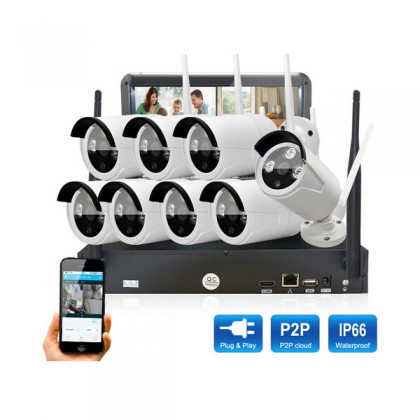

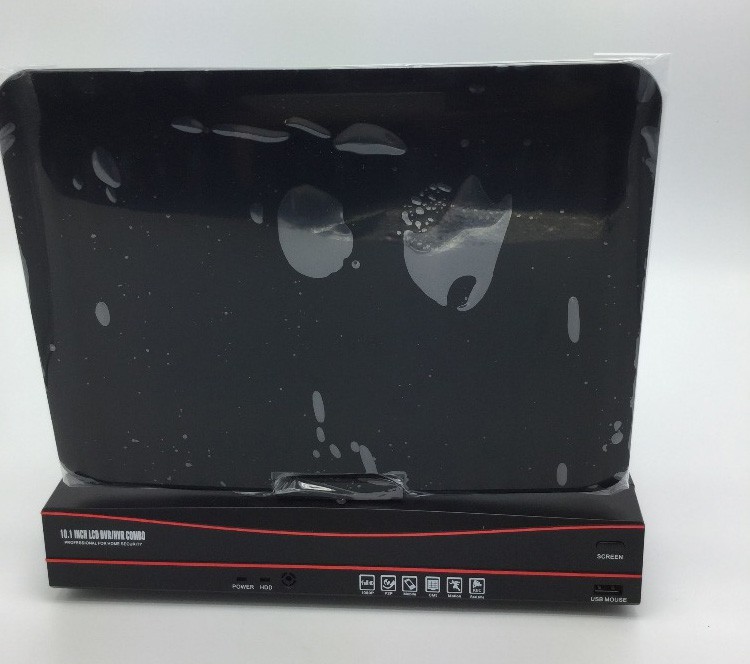

Plug&Play LCD Screen Wireless NVR Security CCTV System 8PCS HD WIFI Camera Home Outdoor IR Video Surveillance Kit

Processor:

Image Sensor:

1/4" Micron CMOS Progressive Scan

Wireless Protocols:

802.11b/g/n, 150Mbps.

Infrared

3 Array IR Leds,
IR Range 20-25m

Min. Illumination:

Colour 0.1 Lux
B/W 0.01 Lux

Day& Night:

Dual IR-cut filter auto switch

Max S/N Ratio:

> 39.1dB

Lens:

The default 3.6mm(6mm,8mm for optional)

2.8mm

3.6mm

4mm

6mm

8mm

12mm

89.7°

75.7°

69.9°

50°

38.5°

26.2°

0-2M

0-4M

3-6M

5-10M

10-20M

20-35M

Video Standard:

H.264

Dual Stream:

Yes

Max.Resolution:

1280*720p

Bit Rate:

32 Kbps ~ 4 Mbps
Supports CBR / VBR

Frame Rate:

1/4" CMOS,15fps 1.3M(1280*720p)

Image Settings:

Brightness, Saturation, Contrast, Hue adjustable

Image Process:

AE, AWB, ABF, ABLC,
Digital WDR, 3D-DNR

Image Orientation:

Flip and Mirror

Privacy Mask:

4 Configurable regions

Title OSD:

Supports Channel name, Date

Alarm Trigger:

Motion Detection

Alarm Way:

Email Alarm

Protocols:

P2P/ DHCP/ DDNS/ PPPoE/ E-Mail/ FTP etc.

Wireless Protocol:

WIFI 802.11b/g/n 150Mbps

NET:

1 * RJ45 10M / 100M ethernet interface

Power:

1 * Ø5.5 RCA interface

Anti-thunder Level:

Standard IEC61000-4-5

Operating Conditions:

-30 °C ~ 60 °C
Humidity 95% or less (non-condensing)

Power Supply:

12 VDC ± 10%

Power Consumption:

≤ 6W

Waterproof:

IP66

Housing Material:

Metal

Weight:

0.65kg
