Features
|
|
Supports IEEE802.11n, IEEE802.11b and IEEE802.11g standards
Complies with IEEE802.3, IEEE802.3u Ethernet Standards
Faster transmission speed up to 300Mbps
Comes with three external antennas for signal quality
|
|
General Specs
|
|

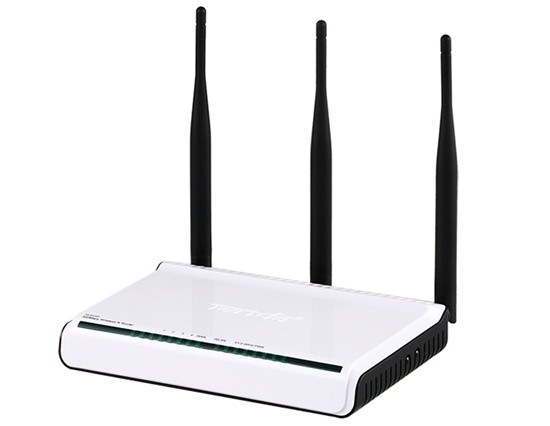

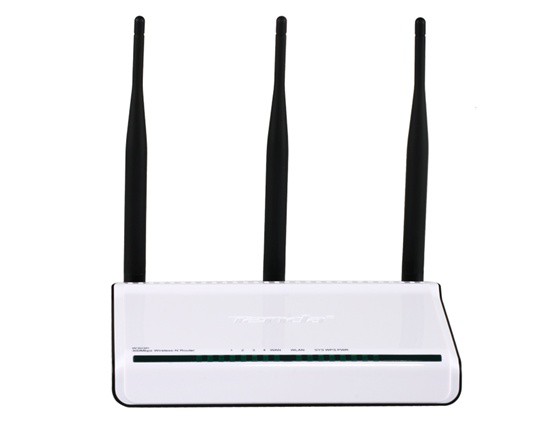

Brand & Model
|
Tenda W303R
|
|
Wireless Standards
|
Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b IEEE 802.3, IEEE 802.3u
|
|
Interface & Speed
|

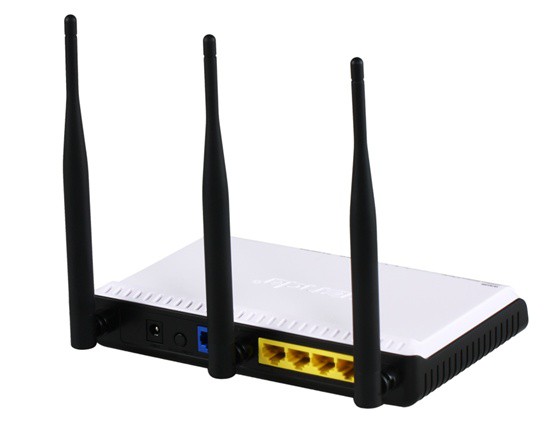

1 x 10/100Mbps WAN Port (Auto MDI/MDIX)
4 x 10/100Mbps LAN port (Auto MDI/MDIX)
|
|
Button
|
Reset/RPS button
|
|
Wireless Speed
|
Up to 300Mbps
|
|
Working Channel
|
1-11
|
|
Frequency
|
2.4GHz
|
|
Wireless Security
|
64-/128- bit WEP, WPA-PSK, WPA2-PSK; WPS
|
|
Wireless Access Control
|
Wireless MAC filter
|
|
Antenna
|
Three 5 dBi fixed omni-directional antennas
|
|

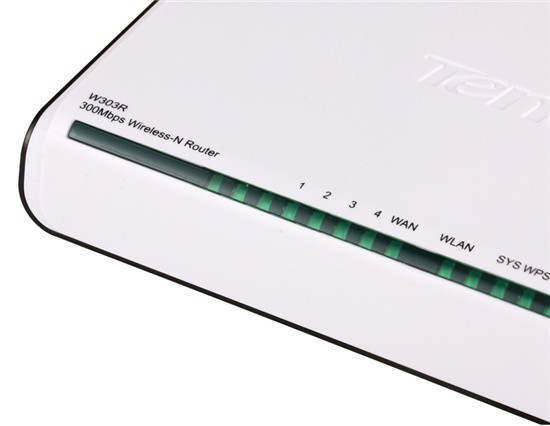

LED Indicator
|
Power, SYS, WLAN, WPS, WAN, LAN (1-4)
|
|
Internet Connection Type
|
PPPoE; Dynamic IP; Static IP; PPTP; L2TP
|
|
Operating Mode
|
WISP Mode WDS DHCP Server DHCP Server; DHCP Client List;
DHCP Reservation
|
|
Remote Web Management
|
DDNS No-IP, dyndns VPN Passthrough PPTP/L2TP Passthrough
|
|
Wireless Radio
|
Enable/Disable
|
|
SSID Broadcast
|
Enable/Disable
|
|
Bandwidth Control
|
Yes
|
|
Logs
|
Yes
|
|
Operating Temperature
|
0°C-40°C
|
|
Storage Temperature
|
-40°C-70°C
|
|
Operating Humidity
|
10%-90% (non condensation)
|
|
Storage Humidity
|
10%-90% (non condensation)
|
|
Network Adapter Certificates
|
FCC, CE, RoHS
|
|
Power
|

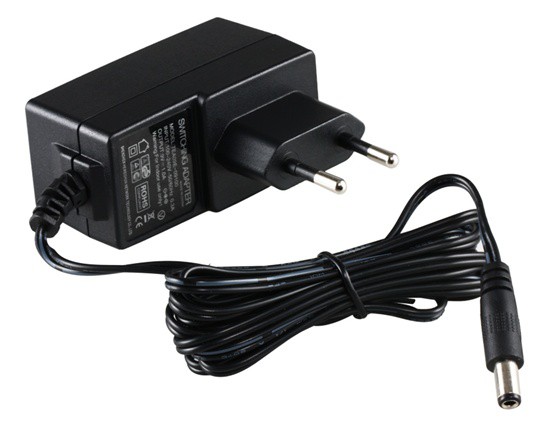

Input: 100-240V～50/60Hz 0.3A, Output: DC 9V, 1A
|
|
Dimensions
|
190 x 129.72 x 32.86 mm
|
Package Details
Weight: 835.67 g
Size: 32.5*25.5*7.5 cm
