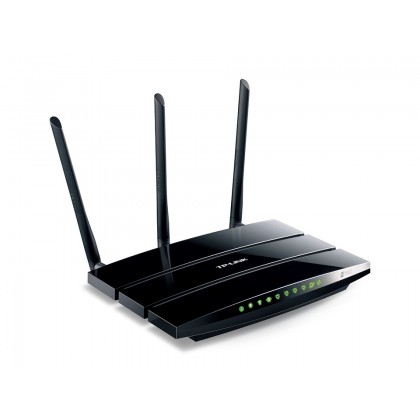

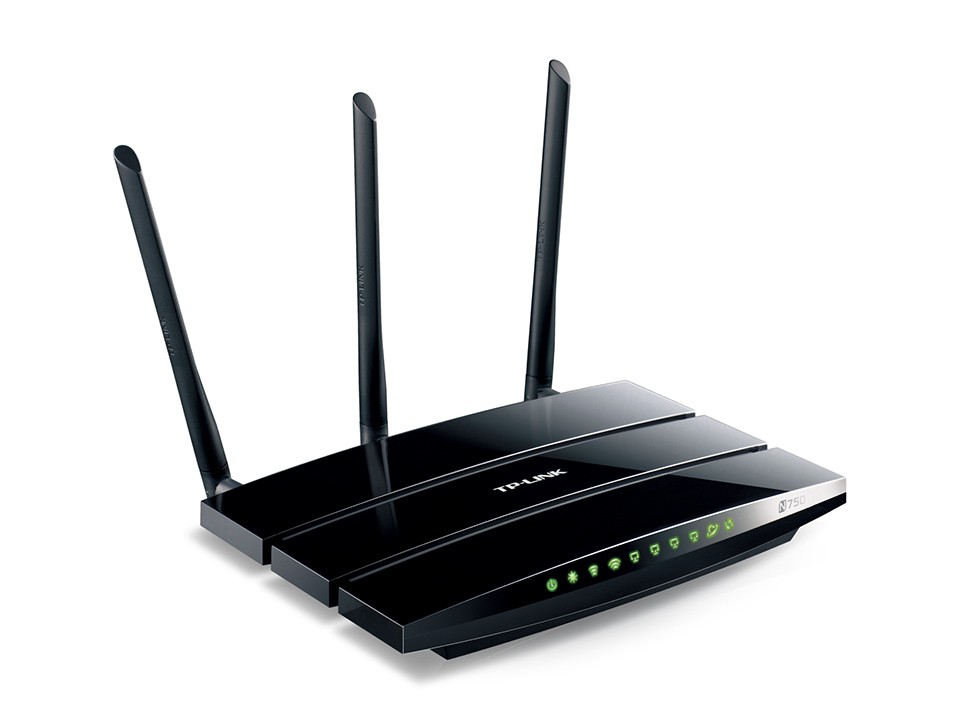

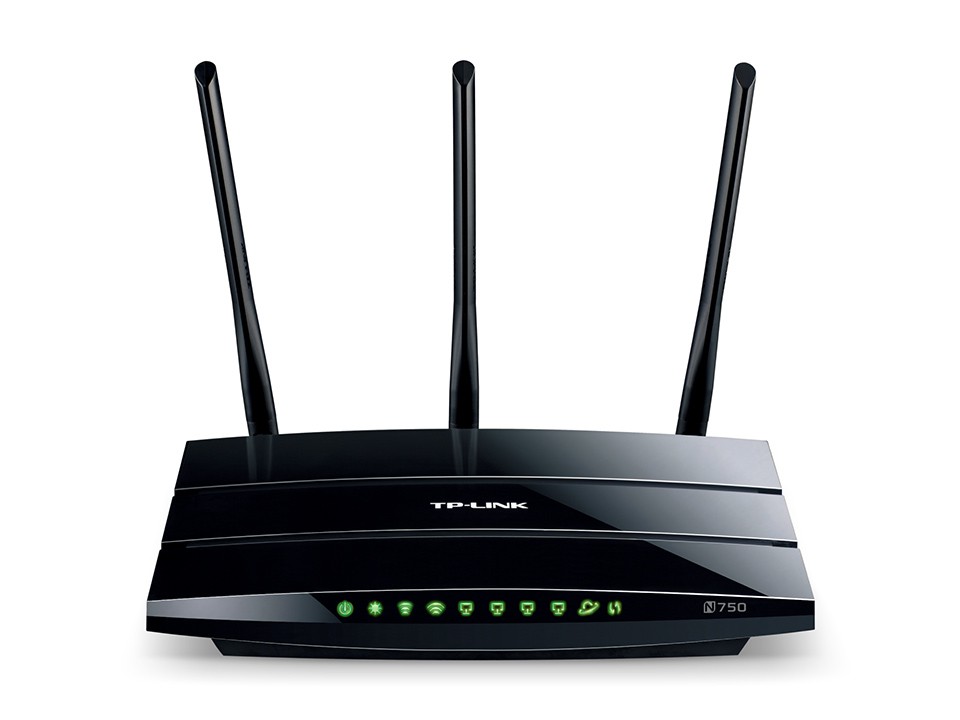

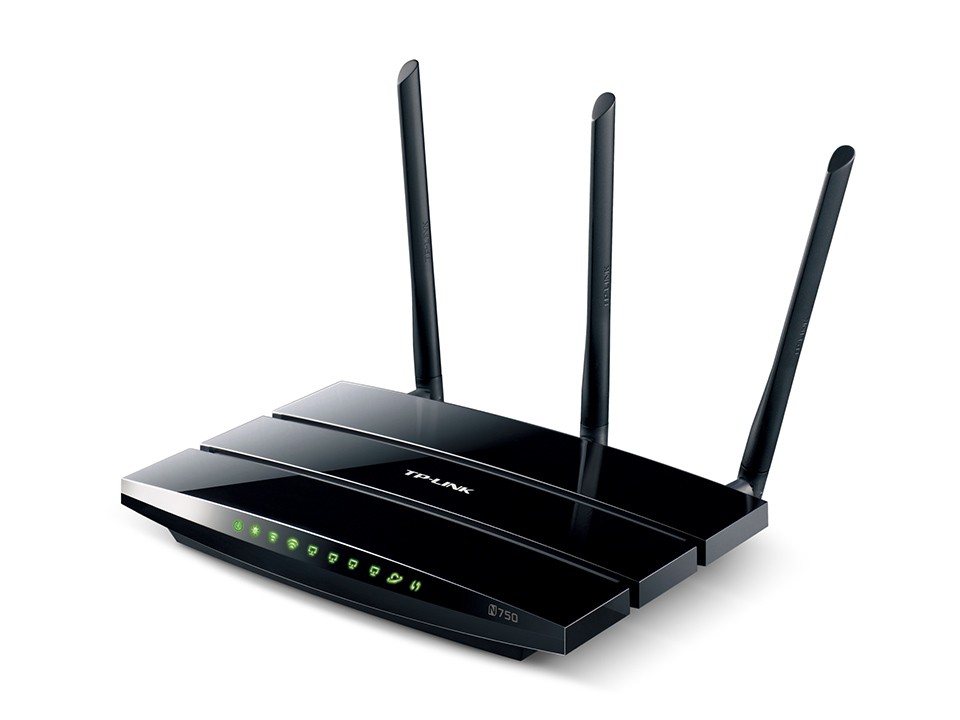

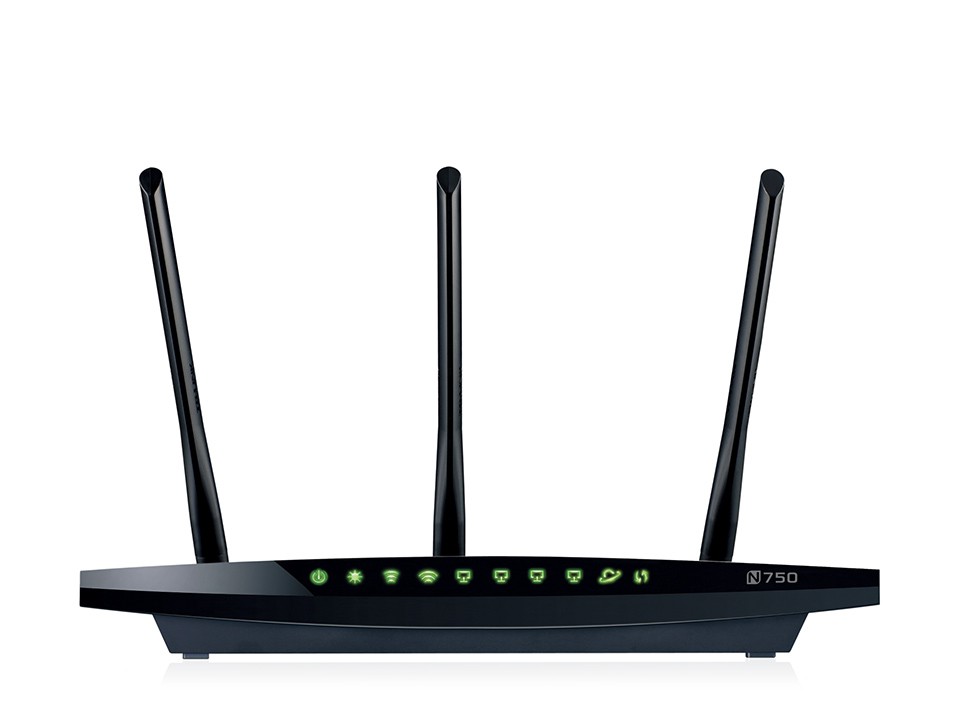

TP-Link N750 Wireless Dual Band Gigabit Router

HARDWARE FEATURES

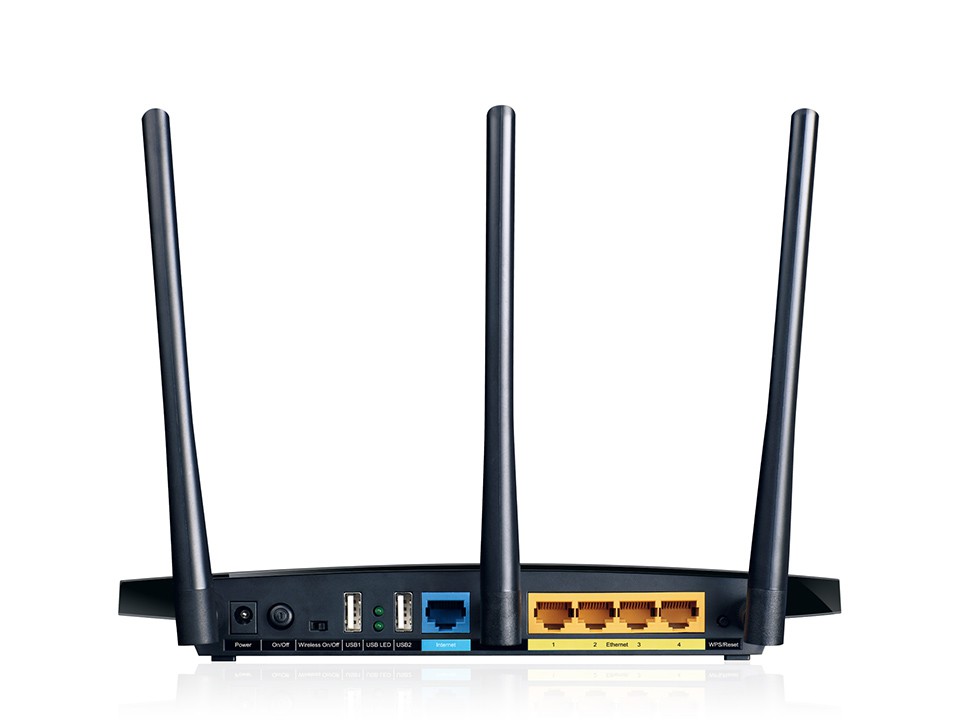

Interface

4 10/100/1000Mbps LAN Ports
1 10/100/1000Mbps WAN Port
2 USB 2.0 Port

Button

WPS/Reset Button
Wireless On/Off Switch
Power On/Off Button

Dimensions (W X D X H)

9.6x6.4x1.3 in.(243x160.6x32.5mm)

Antenna

3 external detachable dual band antennas (RP-SMA)

External Power Supply

12VDC / 1.5A

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Frequency

2.4GHz & 5GHz

Signal Rate

5GHz: Up to 450Mbps
2.4GHz: Up to 300Mbps

Reception Sensitivity

300M_2.4G: -70dBm
270M_2.4G: -70dBm
195M_2.4G: -71dBm
130M_2.4G: -74dBm
54M_2.4G: -79dBm
6M_2.4G: -94dBm
450M_5G: -64dBm
405M_5G: -64dBm
270M_5G: -67dBm
195M_5G: -70dBm
130M_5G: -73dBm
54M_5G: -79dBm
6M_5G: -92dBm

Transmit Power

CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm

Wireless Functions

Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security

64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption

Guest Network

2.4GHz guest network × 1
5GHz guest network × 1

SOFTWARE FEATURES

Quality of Service

WMM, Bandwidth Control

WAN Type

Dynamic IP/Static IP/PPPoE/
PPTP (Dual Access)/L2TP (Dual Access)/BigPond

Management

Access Control
Local Management
Remote Management

DHCP

Server, Client, DHCP Client List,
Address Reservation

Port Forwarding

Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

DynDns, Comexe, NO-IP

VPN Pass-Through

PPTP, L2TP, IPSec

Access Control

Parental Control, Local Management Control, Host List, Access Schedule, Rule Management

Firewall Security

DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding

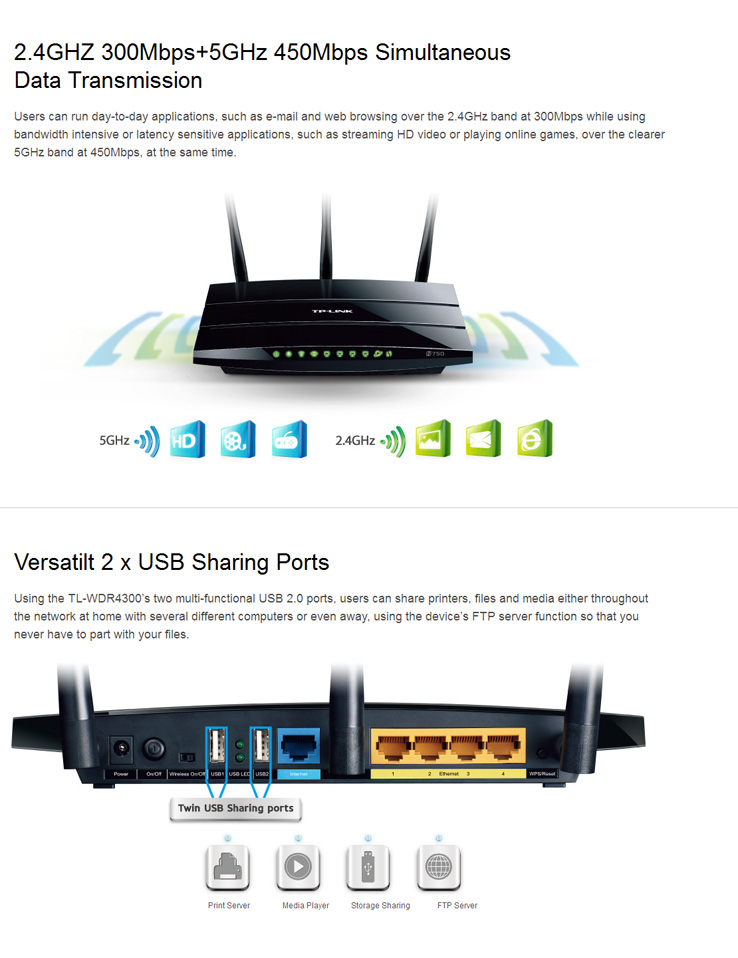

USB Sharing

Support Samba(Storage)/FTP Server/Media Server/Printer Server
