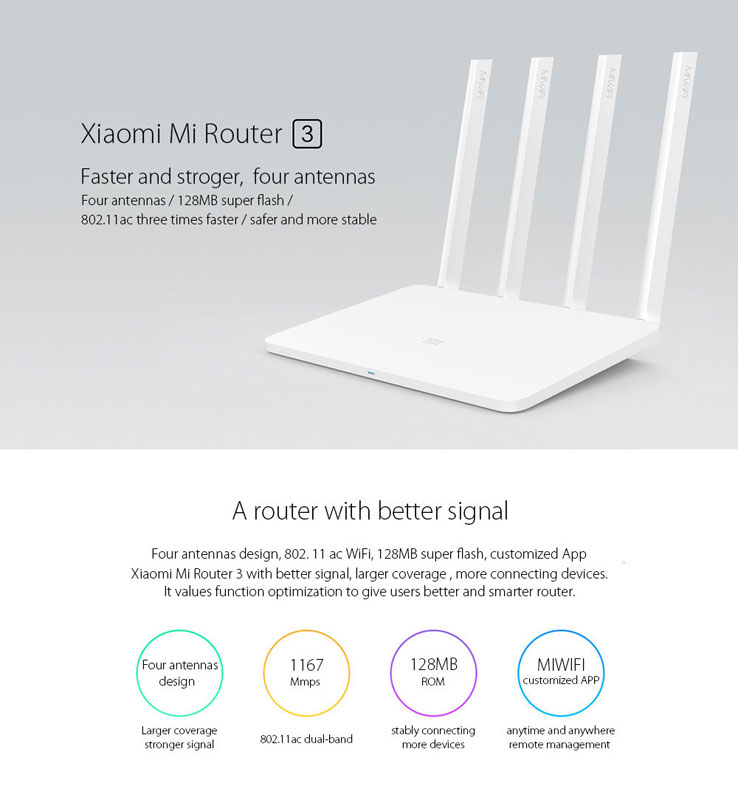

The mainstream of dual band 2.4GHz/5GHz AC intelligent routers

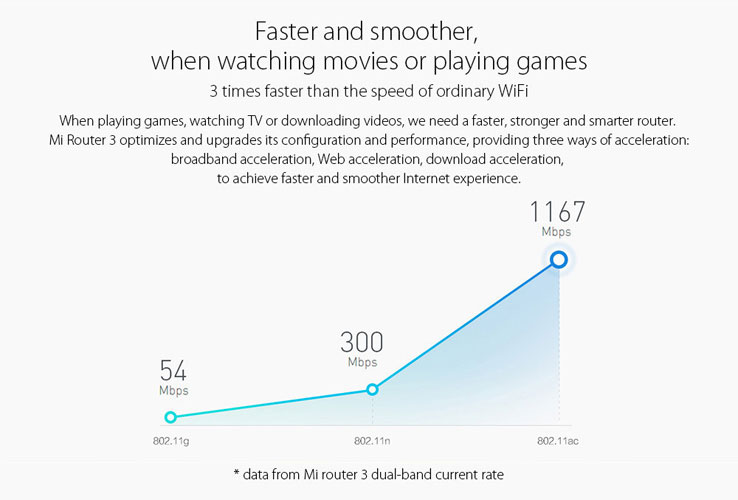

3 times faster than traditional wireless routers, support the latest 802.11ac protocol, up to 1167Mbps total bandwidth, 300Mbps in 2.4G and 867Mbps in 5G.

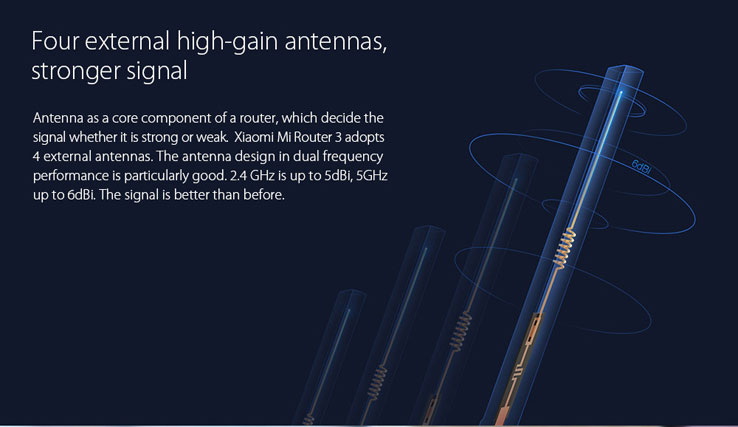

4 pcs real 2X2 dual band AC antennas, cover wilder

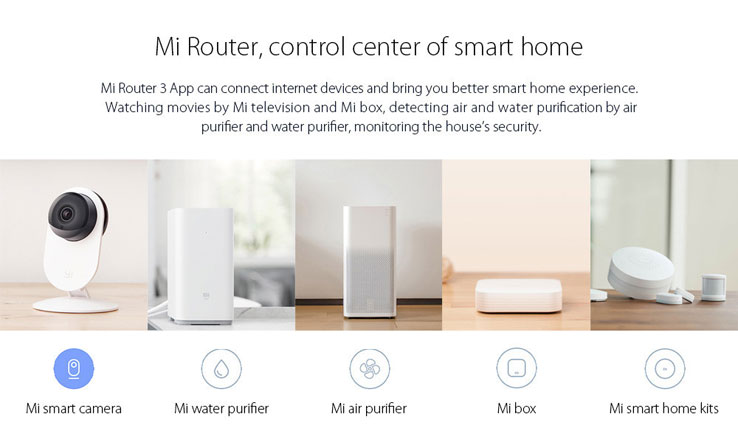

An intelligent home controller center to operate all the smart home appliances

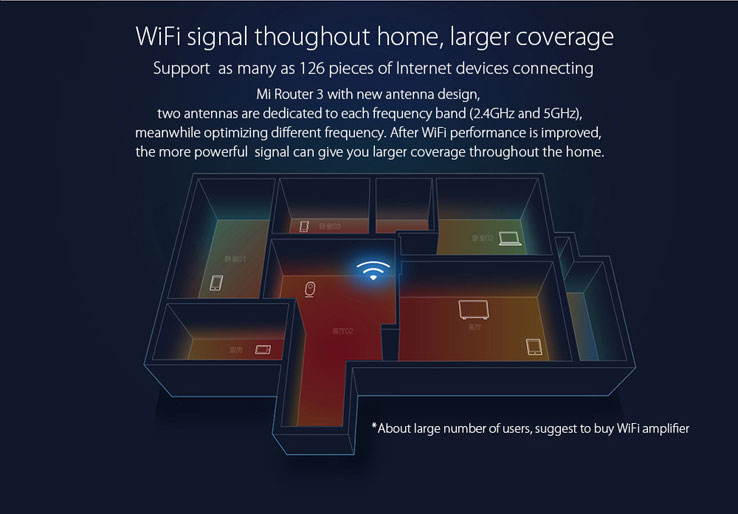

A key switch, the metamorphosis of universal relay let home WiFi coverage without dead angle
7 sets of protection, more secure router, to protect your exclusive WiFi zone and etc.
Creative, direct and swift connection
|
Hardware
|
|
Brand
|
Xiaomi
|
|
Model
|
Miwifi 3
|
|
CPU
|
MT7620A
|
|
RAM
|
128MB DDR2
|
|
ROM
|
128MB SLC Nand Flash
|
|
2.4G WiFi
|
2X2 (support IEEE 802.11N, 300Mbps max)
|
|
5G WiFi
|
2X2 (support IEEE 802.11AC, 867Mbps max)
|
|
Antenna
|
4 PCS
|
|
Language
|
English
|
|

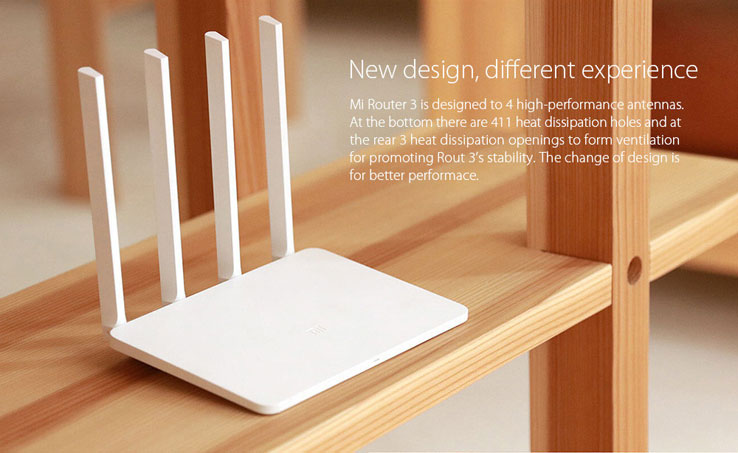

Heat dissipating system
|
Natural heat dissipation
|
|
Material
|
ABS
|
|
Color
|
White
|
|
Size
|
195*131*23.5mm (Total hight: 177.3mm)
|
|
Weight
|
220g
|
|
Interfaces
|
|
USB 2.0 slot
|
1 x DC output (5V/1A)
|
|
Lan port
|
2 (10/100 Auto MDI/MDIX)
|
|
WAN port
|
1 (10/100 Auto MDI/MDIX)
|
|
LED indicators
|
3 (Red/Blue/Yellow)
|
|
Button
|
1 x Reset button
|
|
DC input
|
1
|
|
Antenna
|
|
Dual bands
|
2.4GHz / 5GHz
|
|
Wireless channels
|
2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13
5GHz Channel: 149,153,157,161,165
5GHz DFS Channel: 36,40,44,48,52,56,60,64
|
|
Modulation mode
|
11b: DSSS: DBPSK(1Mbps),DQPSK(2Mbps),
CCK(5.5/11Mbps)
11a/g: OFDM:BPSK(6/9Mbps),
QPSK(12/18Mbps),16QAM(24/36Mbps),
64QAM(48/54Mbps)
11n: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.
Rate: MCS0~MCS15
11ac: MIMO-OFDM:BPSK,
QPSK,16QAM,64QAM,256QAM
Rate: MCS0~MCS9
|
|
Receiving sensitivity
|
11Mbps:≤-90dBm,54 Mbps:≤-72dBm,
HT20 MCS7:≤-69dBm,
HT40 MCS7:≤-66dBm,
VHT20 MCS8:≤-65dBm,
VHT40 MCS9:≤-60dBm,
VHT80 MCS9:≤-58 dBm
|
|
Software
|
|
Operating system
|
MiWiFi ROM (Supports Web, Android, iOS, Windows, OS X)
|
|
Wireless security
|
WPA-PSK/WPA2-PSK encryption, Wireless access control (black and white list), SSID hiding
|
|
Protocol standards
|
IEEE 802.11a/b/g/n/ac, IEEE 802.3/3u
|
|
Approval standards
|
GB9254-2008 YD/T993-1998 GB4943.1-2011
|
|
Working environment
|
Operating temperature: 0-40°C
Working humidity: 10%-90%RH
Storage temperature : -40-70°C
Storage humidity: 5%-90%RH
Power: 12W max
|
Package included:
1 X Xiaomi WiFi Router 3
1 X Charger (12V/1A)
