Features
|
Improves wireless coverage in all WLAN networks Perfectly compatible with 802.11b/g/n devices Compact size, ideal for home or travel use High-speed access of up to 300Mbps Maximum WLAN security with WPA2, WPA and WEP (128/64) Supports Router, Client, Bridge, Repeater, AP mode operation modes Easy wireless security encryption at a push of WPS button Built-in Omni directional antenna
|
General Specs
|
Brand & Model
|
W523N2
|
Interface
|
2 x 10/ 100Mbps LAN ports
|
Button
|
WPS button, Reset button
|
Antenna
|
2 x Internal Omni directional antenna
|
Wireless Standard
|
IEEE 802.11b/g/n
|
Frequency & Rate
|
2.4GHz up to 300Mbps
|
Wireless Transmit Power
|
<20dBm (EIRP)
|
Reception Sensitivity
|
270M: -68dBm@10% PER,130M: -68dBm@10% PER,108M: -68dBm@10% PER,54M: -68dBm@10% PER,11M: -85dBm@8% PER,6M: -88dBm@10% PER,1M: -90dBm@8% PER
|
Wireless Modes
|
Router, Client, Bridge, Repeater, AP mode
|
Wireless Functions
|
Enable/Disable Wireless Radio,WDSBridge, WMM, Wireless Statistics
|
Wireless Security
|
64/128-bit WEP, WPA/WPA2, WPA-PSK, WPA2-PSK encryption
|
WAN Type
|
Dynamic IP/Static IP/PPPOE/PPTP/L2TP
|
DHCP
|
Server, Client, DHCP Client List, Address Reservation
|
Quality of Service
|
WMM, Bandwidth Control
|
Port Forwarding
|
Virtual Server, Port Triggering, UPnP, DMZ
|
Dynamic DNS
|
DynDns, TZO
|
Firewall Security
|
DoS, Firewall, IP Address Filter, MAC Address Filter, Domain Filter IP and MAC Address Binding
|
Management
|
Access Control, Local Management, Remote Management
|
System Requirements
|
Microsoft Windows 98SE/NT/2000/XP/Vista/7/8, MAC OS, NetWare, UNIX or Linux
|
Plug Standard
|
EU plug
|
Package Details
Weight: 210.79 g
Size: 11.5*11.5*8.00 cm
Package Includes

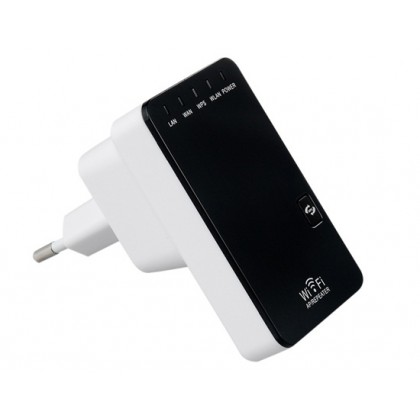

* EU Plug Wireless-N Mini Router withDualLANPort
