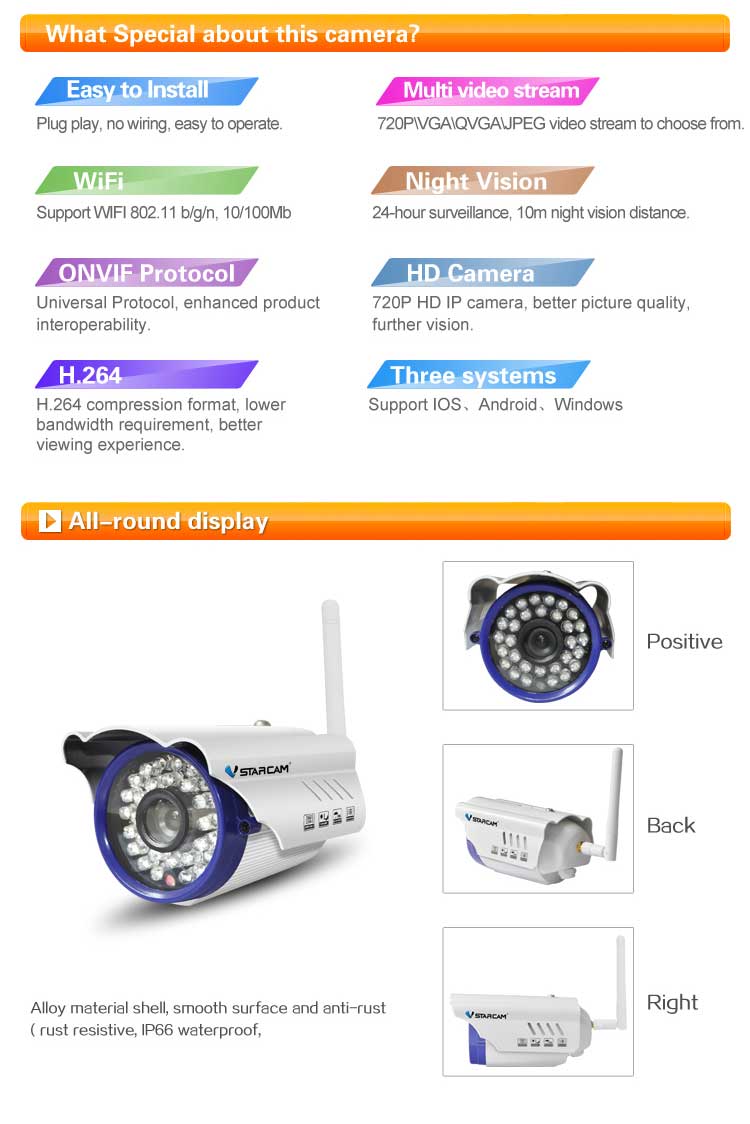

C7815WIP 15m IR distance Support 64G TF card HD WIF Network Camera

Features

System security

8-level user authority management, built in watchdog,can auto test chipset and software.

Built-in dynamic IP domain system (Free)

No need domain name, support dynamic IP.

Mobileview platform

No need install software, multi-channel mobile view, support mobile view alarm snapshot.

Plug & Play

Plug & Play technology applied.99% penetration rate. Only three steps to view image.

UID Technology

Unique scan UID to add camera, easy to operate, and highly confidential.

CMS

1、4、9、16、25、36、64、81-channel central management surveillance system, no user limitation. Centralized monitoring, remote recording, remote playback.

Core

O.S

Built in Linux

Control protocol

ONVIF protocol,high interoperability

Processor

Hi3518Cprocessor,built in ARM9 @Max. 440MHz and High-speed video co-processor

Video

Compression format

H.264 Baseline Profile@H.264 Main Profile@MJPEG/JPEG Baseline

resolution/frame rate

720p/VGA/QVGA   30fps/25fps

Image adjustment

Brightness, Contrast, Saturation are adjustable

Sensor

1/4 720p Progressive CMOS sensor

Minimum illumination

1.0 Lux / F1.2

CMOS

support AWB,AGC,BLC

Sensor size

3.84mm×2.16mm

Video coding

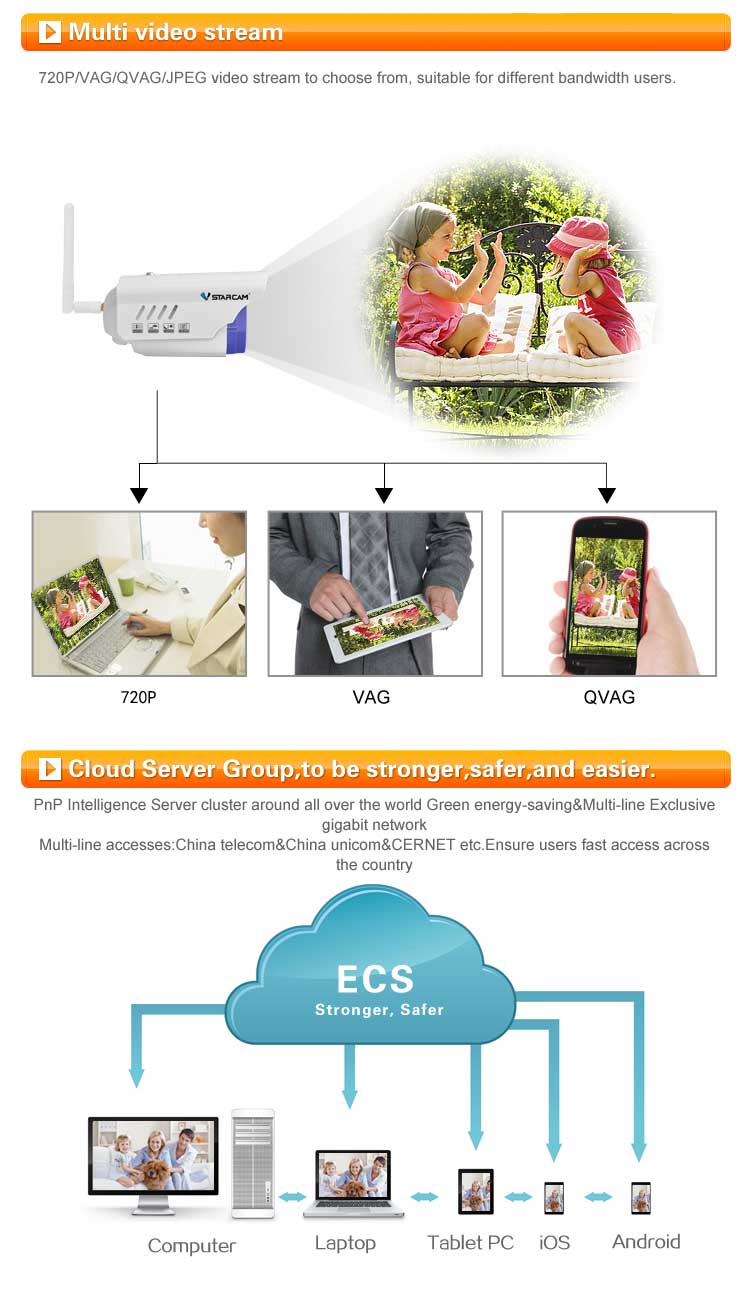

Multi stream：720P@30fps+VGA@30fps+QVGA@30fps+720P @1fsJPEG capture

Bit Rate

CBR/VBR,output range：32kbps～40Mbps

 Lens/viewing angle

3.6mm/56.14°

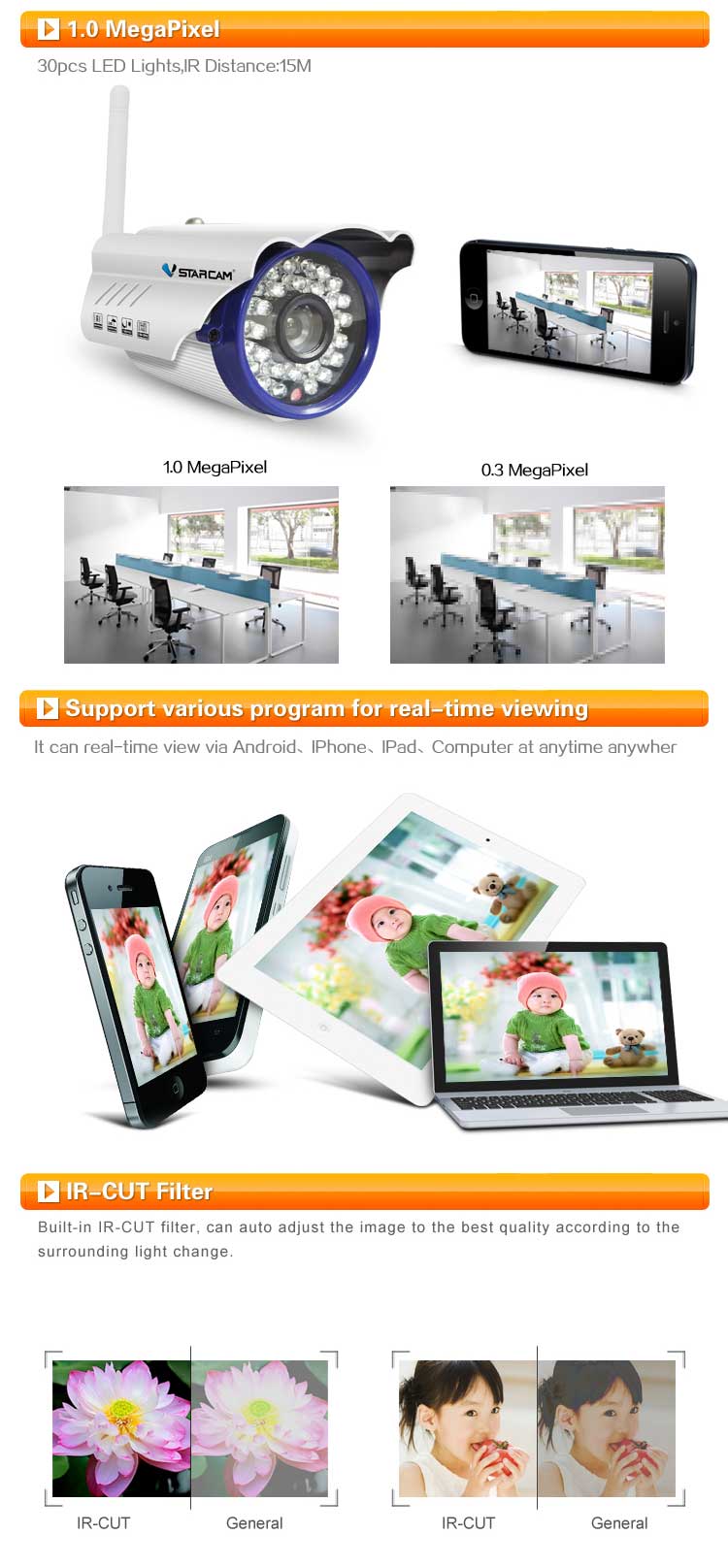

Night Vision

Night vision

Dual IR-CUT Filter auto switch, 30pcs 850nmΦ5mmLED,15mIR distance

Network

Socket

10/100Mb   self-adaptable Ethernet slot

Network Protocol

TCP/IP,HTTP,RTSP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,,P2P ,ONVIF ect.

Online visitor

Support 4 online visitors viewing simutaneously

IP address

Dynamic IP and static IP address

WIFI

WIFI 802.11 b/g/n

TF card

support64GTF card .

Network adaptability

 can auto adjust stream and frame rate according to the bandwidth

Others

Housing material

Engineering-plastics

Use Enviroment

both indoor and outdoor

Power supply

DC12V±10%

Working temperature

-20 ~50 ℃

RTP

Support RTP, can auto adjust time when restart after power failure.

Accessories

Power adapter, user manual, warranty card,mounting bracket,screws.

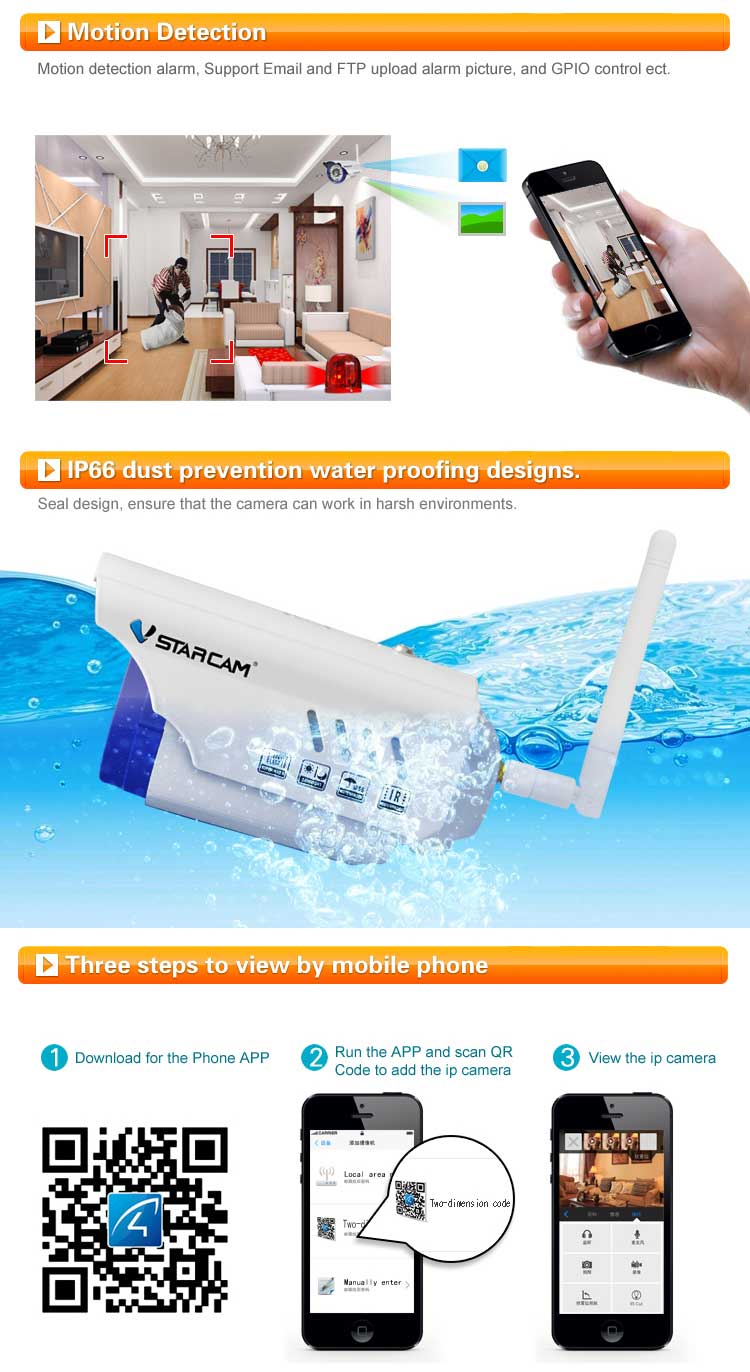

Motioin Detection

can setup motion detection sensitivity

Alarm notification

E-mail snapshot, FTP upload alarm pic .

System Requirements

Operating System

Win98 SE/ME/2000/XP/Vista/win7  IE5.0, NET4.5, firefox, chrome

Certificate

Certificates

ISO FCC CE RoHS

Only for reference
